Supply Currents in Standby Mode for ATtiny406

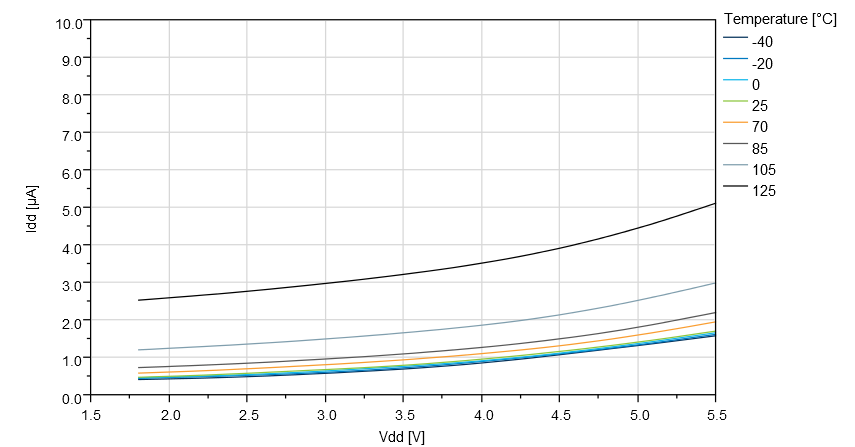

Figure 1. ATtiny406: Standby Mode Supply Current vs. VDD (RTC Running with External 32 KHz Osc.)

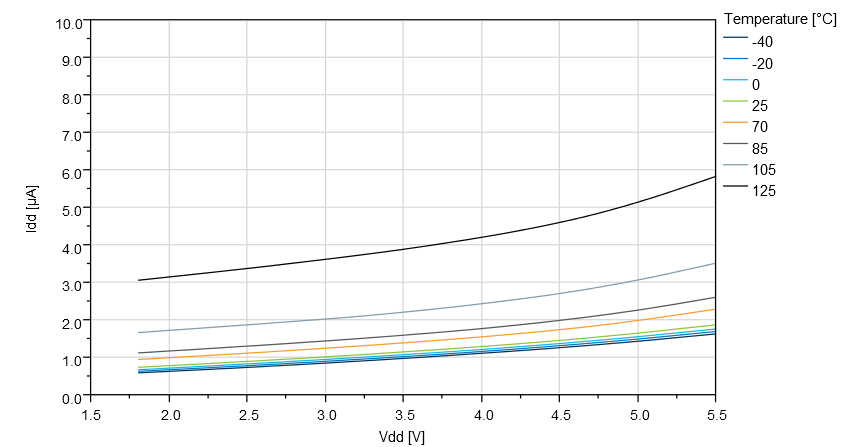

Figure 2. ATtiny406: Standby Mode Supply Current vs. VDD (RTC Running with Internal OSCULP32K)

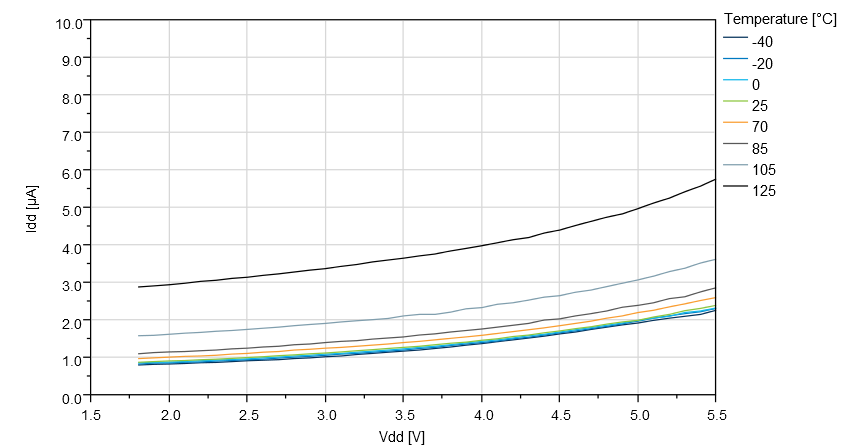

Figure 3. ATtiny406: Standby Mode Supply Current vs. VDD (Sampled BOD Running at 125 Hz)
Figure 4. ATtiny406: Standby Mode Supply Current vs. VDD (Sampled BOD Running at 1 kHz)
