Supply Currents in Idle Mode for ATtiny406

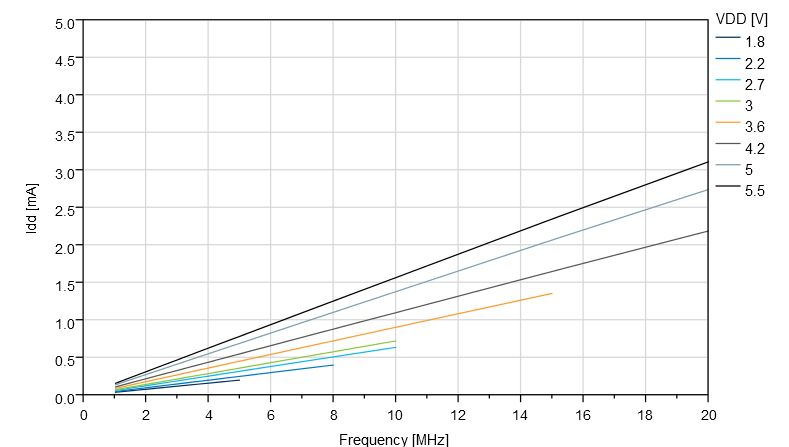

Figure 1. ATtiny406: Idle Supply Current vs. Frequency (1-20 MHz) at T=25°C

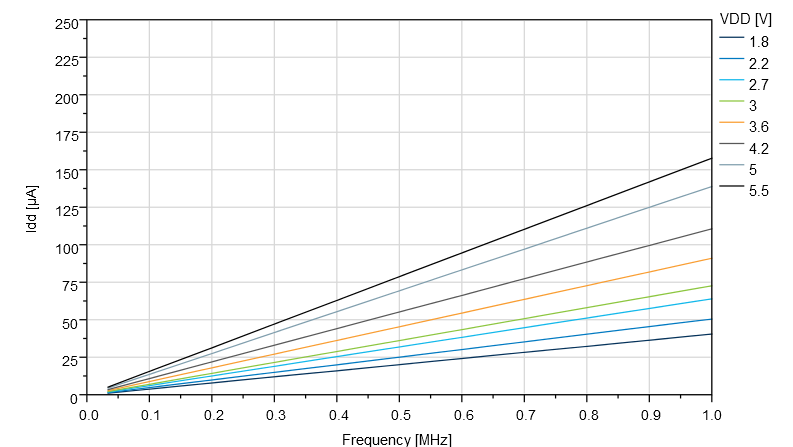

Figure 2. ATtiny406: Idle Supply Current vs. Low Frequency (0.1-1.0 MHz) at T=25°C

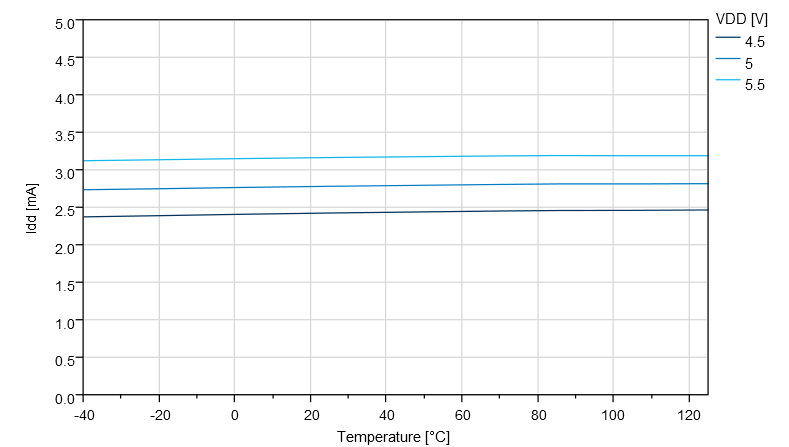

Figure 3. ATtiny406: Idle Supply Current vs. Temperature (f=20 MHz OSC20M)

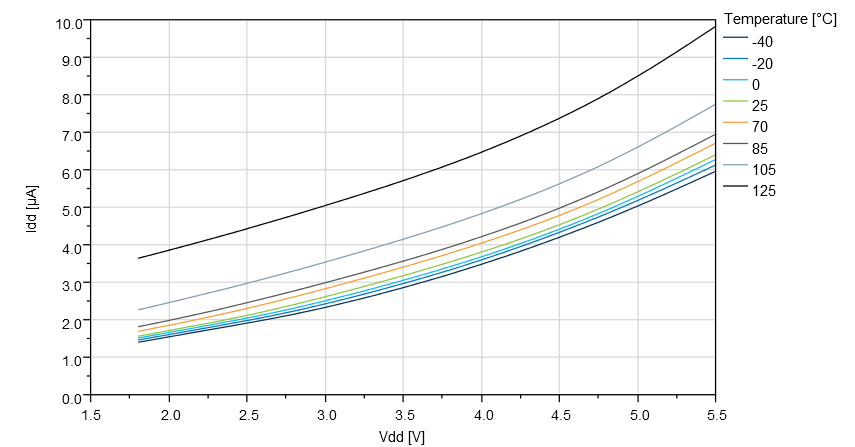

Figure 4. ATtiny406: Idle Supply Current vs. V_DD (f=32 KHz OSCULP32K)
