Supply Currents in Power-Down Mode
for
ATtiny406

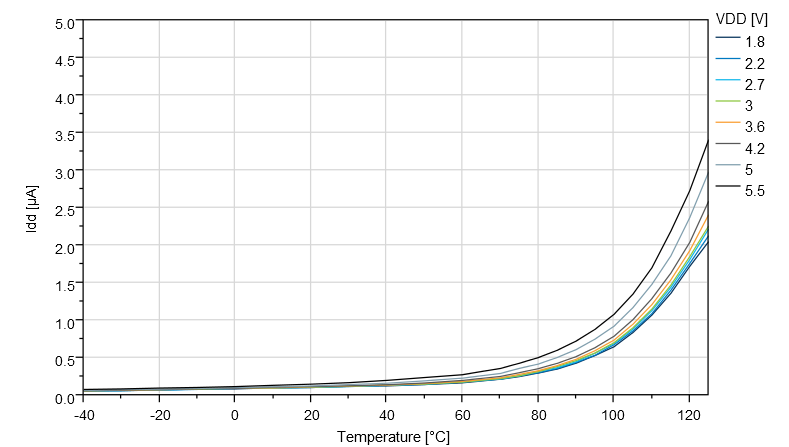

Figure 1.
ATtiny406
:
Power-Down Mode Supply Current vs. Temperature (All Functions Disabled)

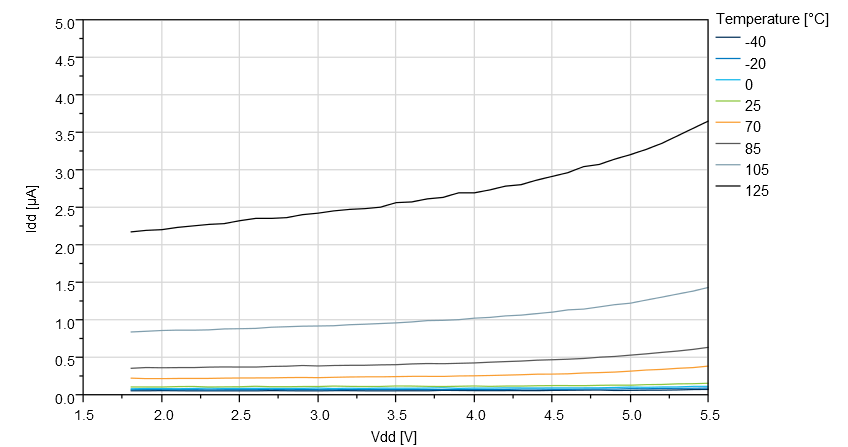

Figure 2.
ATtiny406
:
Power-Down Mode Supply Current vs. V
DD
(All Functions Disabled)
