Single PER Test

Sensitivity testing:

Using the PER test, sensitivity can be tested by configuring one of the nodes as a transmitter and another as a receiver. The number of packets to be transferred is configured on the transmitter and all the packets received by the receiver are acknowledged. The receiver keeps count of the packets received. At the end of the test the transmitter asks the receiver for the test results. The test results are displayed on the Performance Analyzer window at the end of the test.

Diversity feature testing:

In a multipath environment, several versions of the same signal with different phases, delays, and attenuations will be added together at the receiver location, so there is always the possibility that at some locations, the signals could cancel each other out almost entirely. One way to overcome the multipath issue is to use the receiver antenna diversity technique. In this method, two antennas are used instead of one in the receiver. This way, if one antenna is in a multipath null (also known as deep-fading region), the other antenna has a good chance of being outside the deep-fading region. The receiver can switch between these two antennas to escape from a multipath null. Enable Diversity in the radio by using the Transceiver settings control. The antenna diversity feature can be tested by doing the PER measurement on conductive medium.

TX Power handling:

The PER measurement mode gives an option to configure the TX out power in the form of absolute power in dBm.

How Transceiver performance is affected at various Power levels can be studied using this.

Pre-requisite:

Kits should be pre-flashed with the latest available revision of the Performance Test Application.

1. Connect one of the kits to Performance Analyzer.
2. Power ON both the kits.
3. Choose the COM port to which the kit is connected and click Connect.


4. After setting the appropriate COM settings in the Pop-up, click OK. The kit appears on the Performance Analyzer UI with the status "Connected".
5. Right click on the kit and choose "Initiate Peer Search" from the Context menu. On successful pairing , the status of the kit will be updated as "Paired".


6. Default properties of the kit gets displayed in the Kit/Transceiver Properties UI control. The configuration properties can be edited and applied to the kit.
   Note: A short description of the chosen Property will be displayed at the bottom. For detailed description/kit specific details, refer to the datasheets available online at www.atmel.com .
7. If the entered value is outside the valid range, the Performance Analyzer's validation mechanism will highlight the erroneous value of the property. Also, the Write button will be disabled till the error is corrected.
   Note: A helpful balloon tip message will guide you to the correct range of values.
8. Once the edits are completed, click on the "Write" button to update the Performance Test application running on the kit.
9. With all the configuration done, Packet Error Rate Test is ready to be run. Go to Packet Error Rate Test tab and click on the "Play" button to start the PER Test.

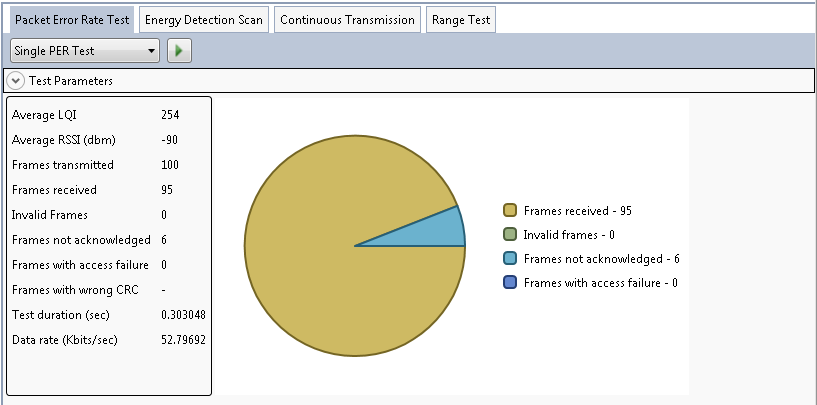

10. Once the PER Test is completed, the test results will be displayed in the tab window.


    Interpreting PER Test results:

    Table 1. Result Information

    Property	Description
    Average LQI	Gives the average Link Quality Indication during the test The minimum (0x00) and maximum (0xFF) should be associated with the lowest and highest quality compliant signals, respectively
    Average RSSI	Gives the average Received Signal Strength Indication during the test RSSI is a 5-bit value indicating the received power in the selected channel in 3dB increments
    Frames Transmitted	Number of frames transmitted from the transmitting node
    Frames Received	Number of frames received at the receiving node
    Frames failed	Number of frames that failed the transmission
    Frames not acknowledged	Number of frames acknowledged received from the receiving node N/A if ACK request is set to false in the transceiver properties before the test
    Frames with access failure	Number of frames that could not be transmitted due to no available channel
    Frames with wrong CRC	Number of frames that does not pass CRC N/A if CRC checks are disabled
    Test duration	Time for the test to complete
    Data rate	Data rate for the transmitted packages

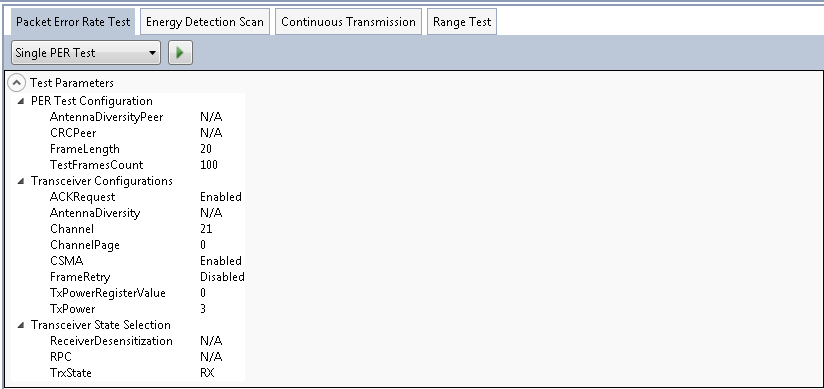

11. The 'Test Parameters' drop-down expander shows the settings used for the test.


12. If you wish to run another test, click on the "Play" button again. Or, if you wish to re-configure the Performance Test application, do so and "Write" the changed values to the kit before proceeding to run another PER test.
