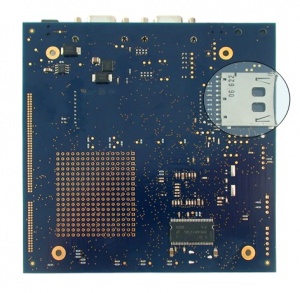

The EVK1100 provides one SD/MMC connectors interfaced with SPI.
Pinout
The SDMMC Interface follows the pinout:
| SDMMC I/O Interface | GPIO Name | Alternate function used |
|---|---|---|
| D0 | PA 17 | SPI1_MISO |
| D3 | PA 18 | SPI1_CS1 |
| CLK | PA 15 | SPI1_SCK |
| CMD | PA 16 | SPI1_MOSI |
| DETECT | PA 02 | |
| #WP | PA 7 |

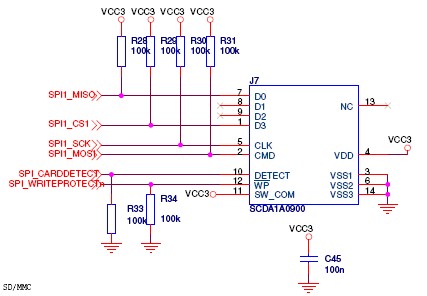

Figure 1. Hardware Schematic
