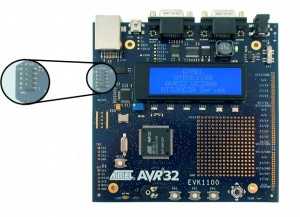

The JTAG interface enables to connect debuggers like JTAGICE mkII.
Pinout
The JTAG Interface follows the pinout:
| JTAG I/O Interface | GPIO Name-Alternate |
|---|---|
| #RESET | _RESET |
| TDO | TDO |
| TCK | TCK |
| TDI | TDI |
| TMS | TMS |
| EVTO | Expansion Header |
Figure 1. Hardware Schematic
