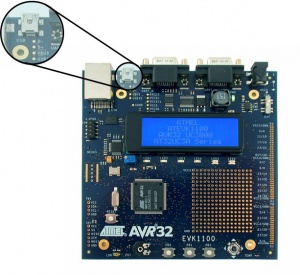

The EVK1100 provides USB hardware interface that enable the board to act as a USB host or a USB device (USB 2.0 mini A-B receptacle).
Pinout
The USB Interface is connected through two serial 39Ω resistors to the mini A connector. The USB Interface follows the following pinout:
| USB I/O Interface | GPIO Name |
|---|---|
| D- | DM |
| D+ | DP |
| VBUS | VBUS |
