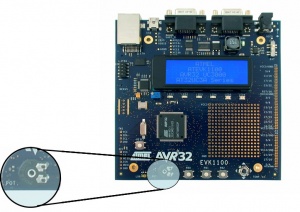

The EVK1100 provides a potentiometer to start Analog to Digital applications.
Pinout
The pinout is as follows:
| GPIO Name | Alternate function used |
|---|---|
| PA 22 | ADC1 |

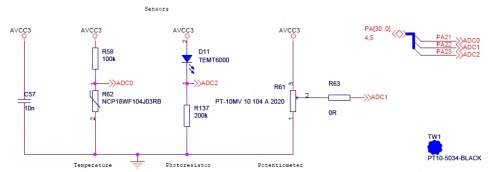

Figure 1. Hardware Schematic
The EVK1100 provides a potentiometer to start Analog to Digital applications.
The pinout is as follows:
| GPIO Name | Alternate function used |
|---|---|
| PA 22 | ADC1 |
