The I2S can support several
serial communication modes used in audio or high-speed serial links. Some standard
applications are shown in the following figures.
Note: The following examples are not a
complete list of serial link applications supported by the I2S.

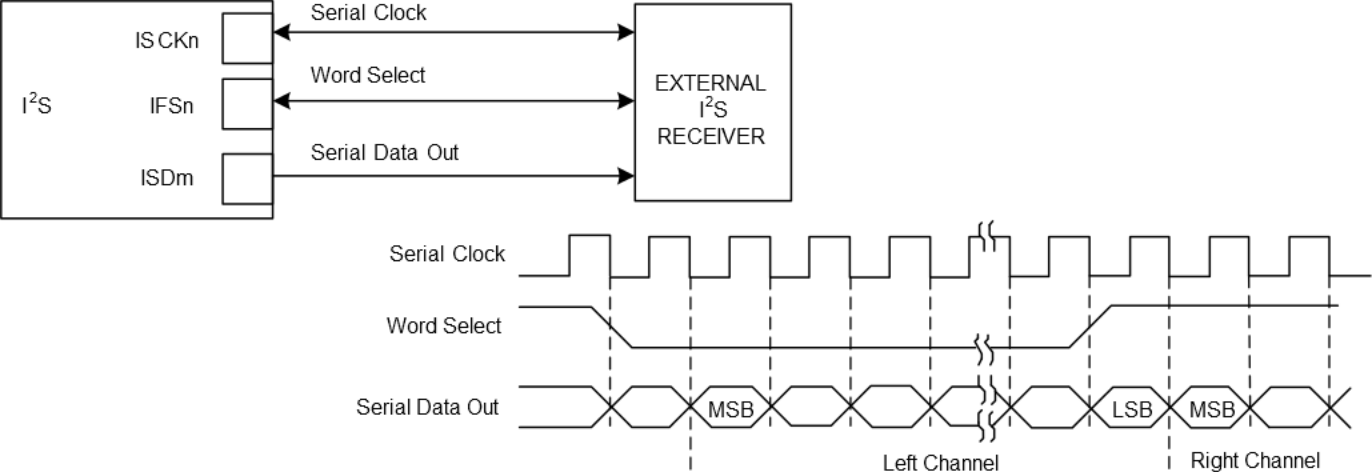

Figure 1. Audio Application Block
Diagram

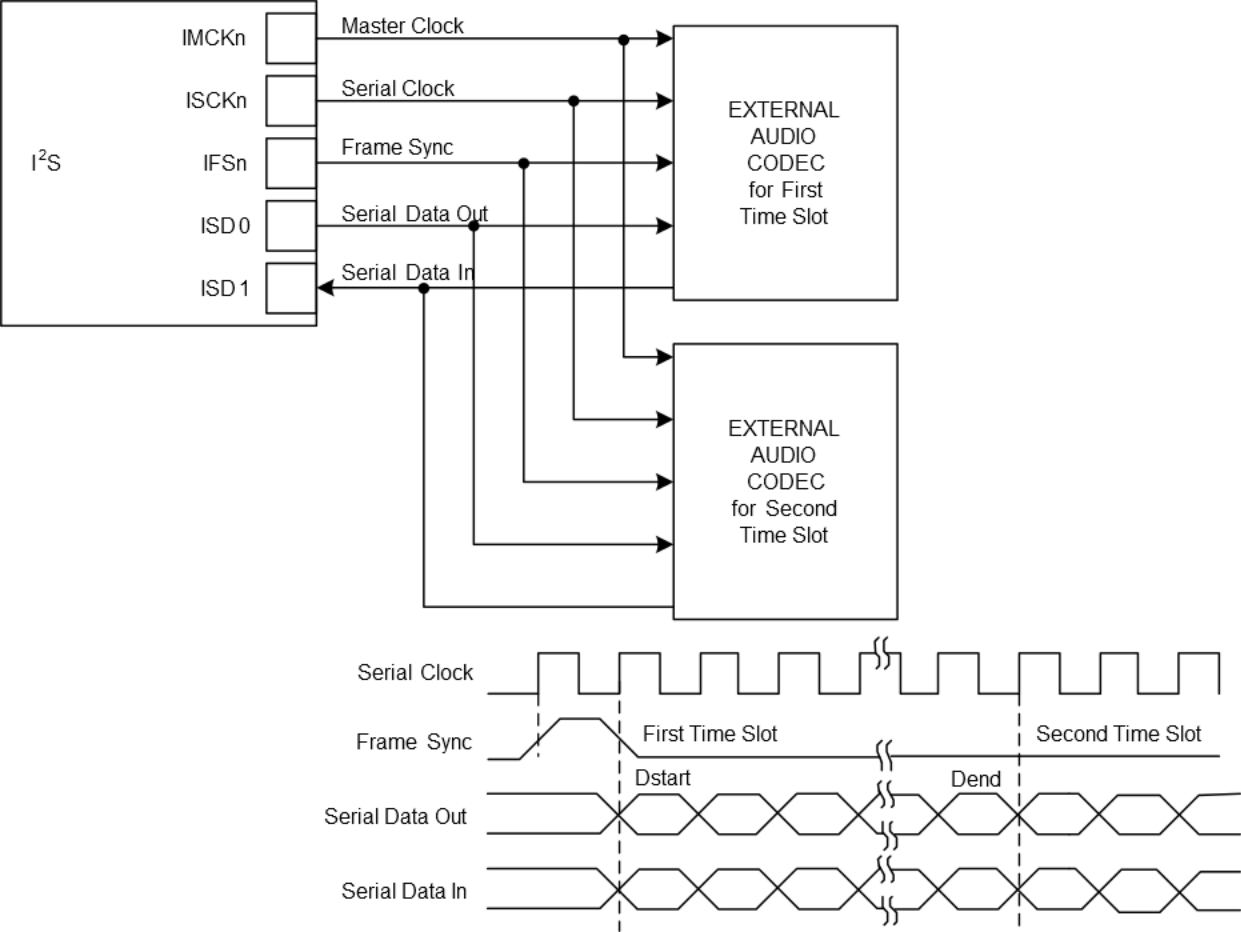

Figure 2. Time Slot Application Block
Diagram

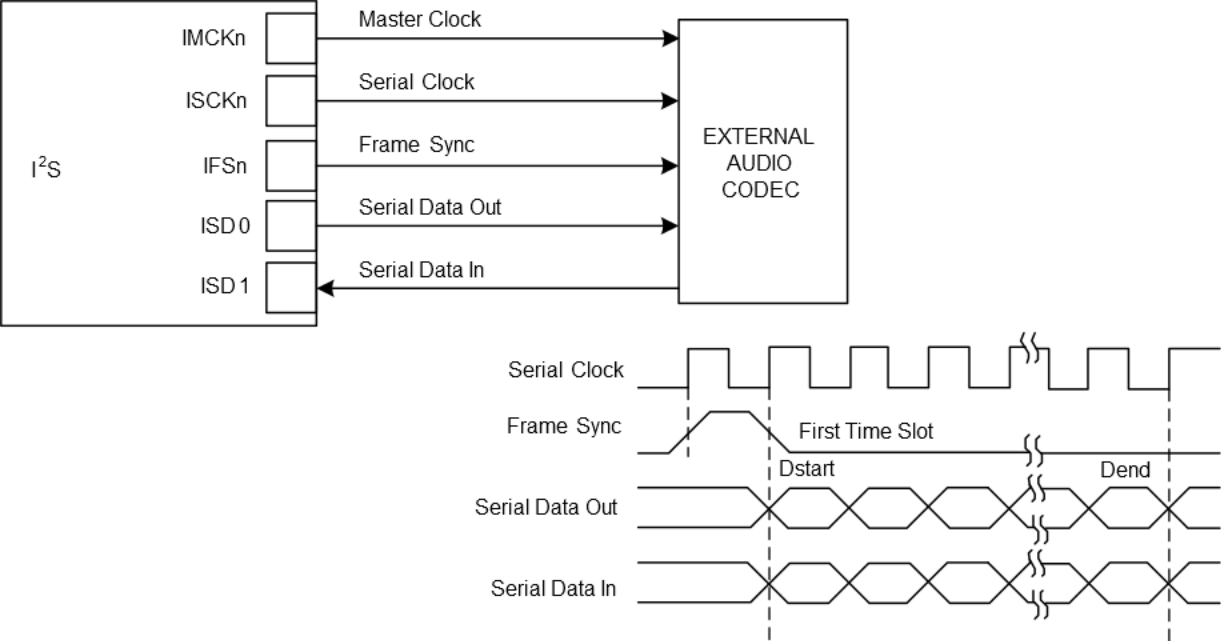

Figure 3. Codec Application Block
Diagram

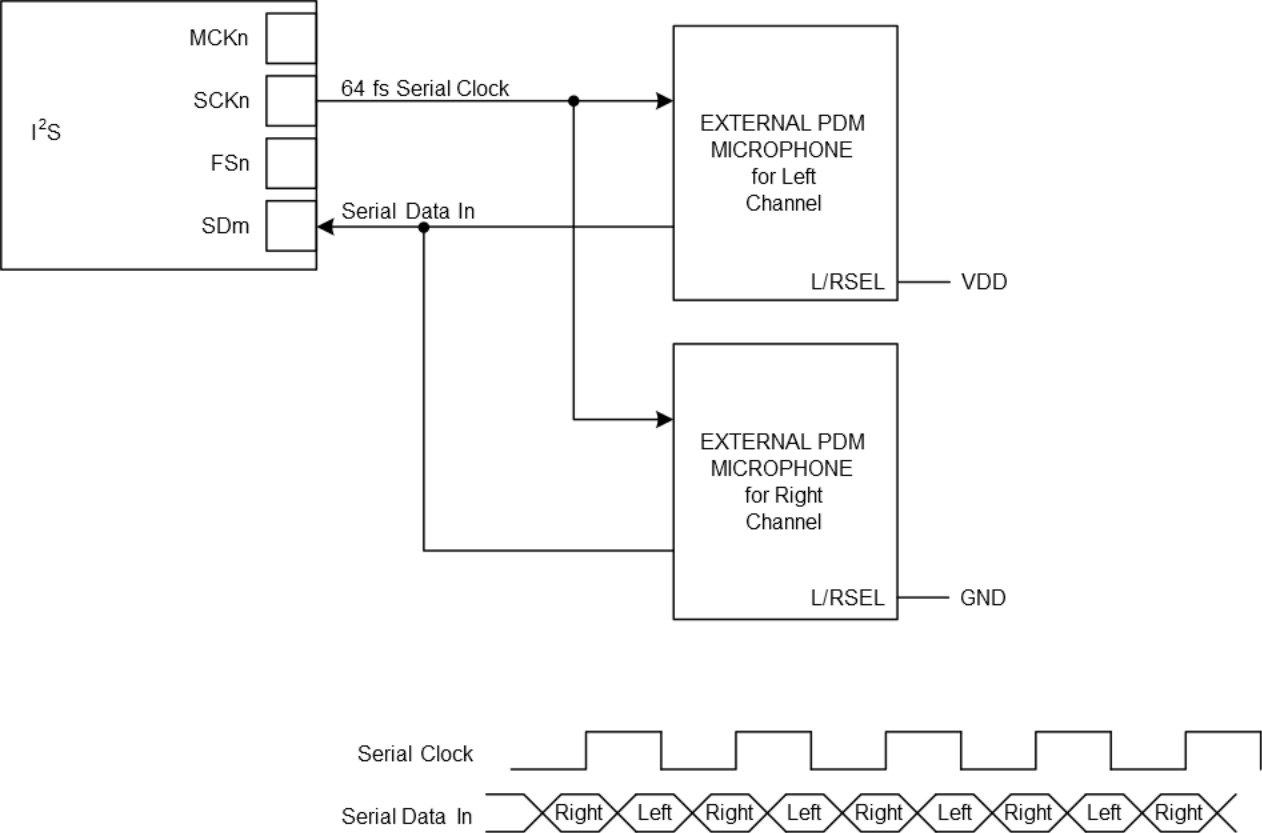

Figure 4. PDM Microphones Application Block
Diagram
