Block Diagram

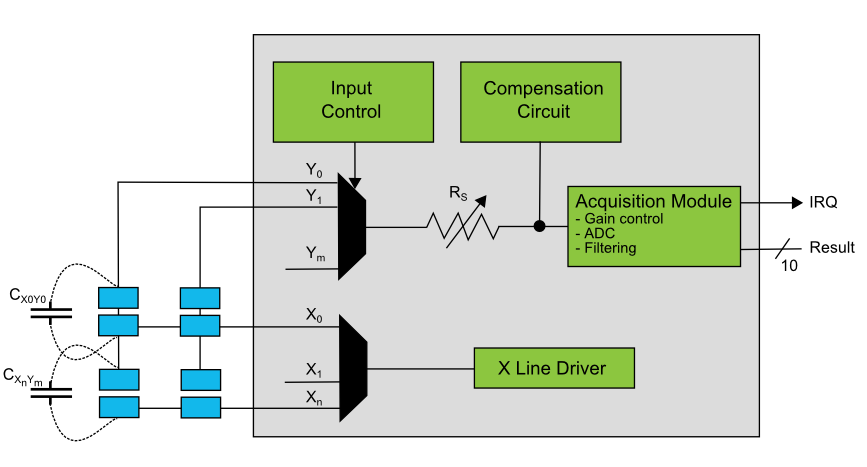

Figure 1. PTC Block Diagram Mutual-Capacitance

Note: For SAM D21 the R_S = 0, 20, 50, 100 KΩ.

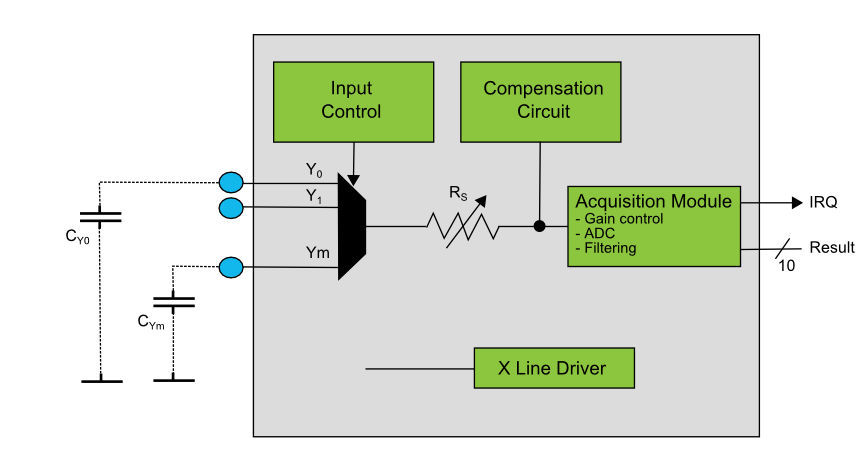

Figure 2. PTC Block Diagram Self-Capacitance

Note: For SAM D21 the RS = 0, 20, 50, 100 KΩ.
