VCC = 3.3C and fCPU = 48MHz for the following PTC measurements.

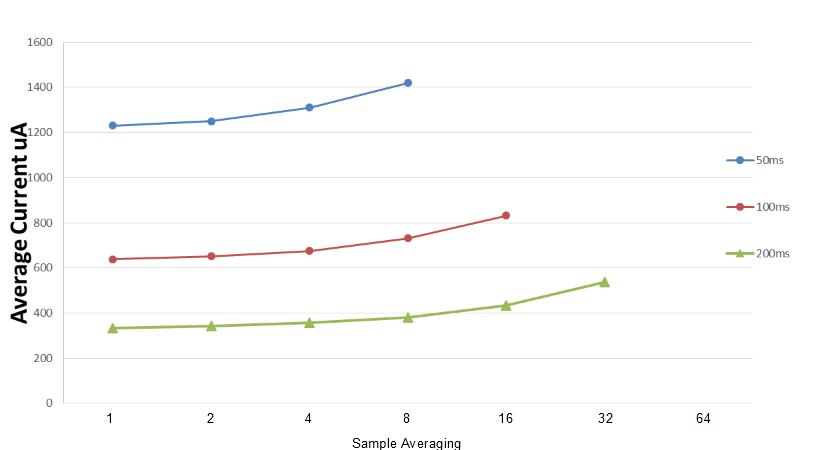

Figure 1. 1 Sensor / PTC_GCLK = 4MHz /
FREQ_MODE_NONE

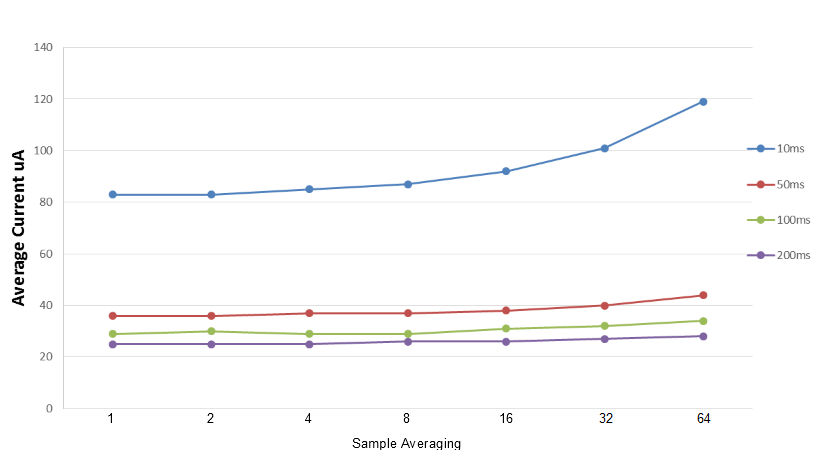

Figure 2. 1 Sensor / PTC_GCLK = 2MHz /
FREQ_MODE_HOP

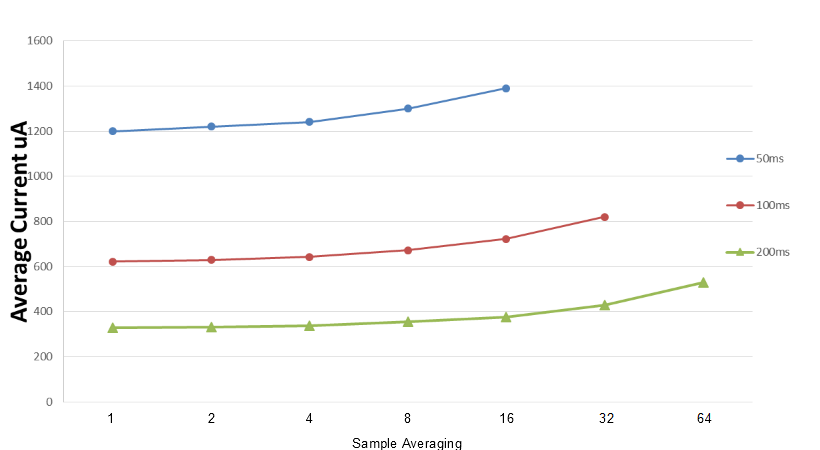

Figure 3. 10 Sensor / PTC_GCLK = 4MHz /
FREQ_MODE_NONE

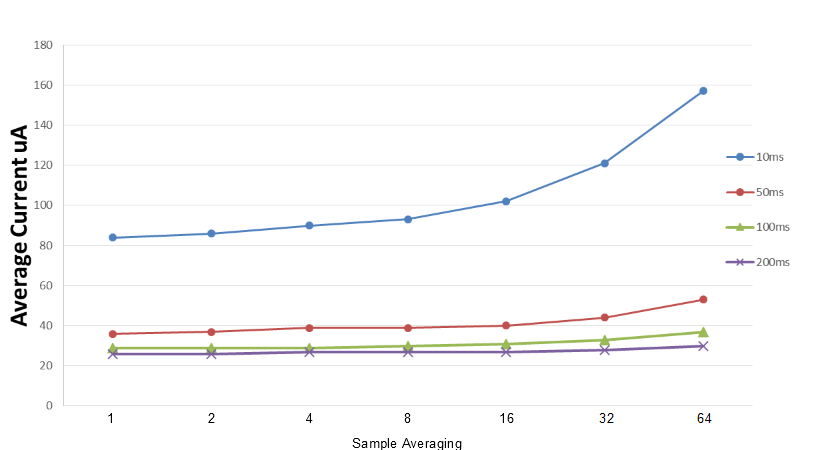

Figure 4. 10 Sensor / PTC_GCLK = 2MHz /
FREQ_MODE_HOP

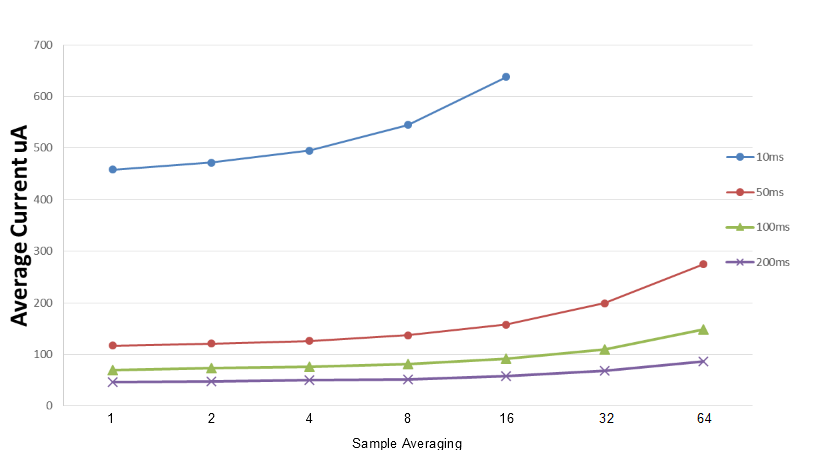

Figure 5. 100 Sensor / PTC_GCLK = 4MHz /
FREQ_MODE_NONE

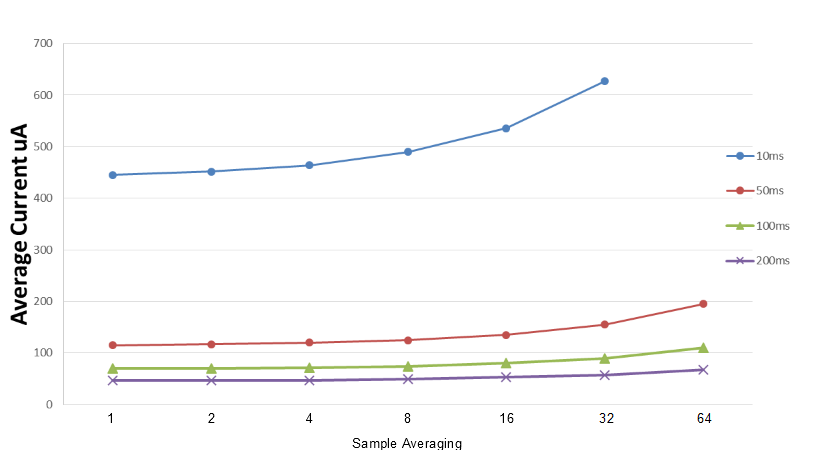

Figure 6. 100 Sensor / PTC_GCLK = 2MHz /
FREQ_MODE_HOP
