The EVK1105 contains a 64 Mbit Atmel Dataflash device (AT45DB642D-CNU) that is connected to the SPI0 interface.
Pinout
The Atmel Dataflash Interface follows the pinout:
| DATAFLASH I/O Interface | UC3A GPIO Name | Alternate function used |
|---|---|---|
| #CS | PA10 | SPI0_CS0 |
| #RESET | RESET_n | - |
| SCK | PA13 | SPI0_SCK |
| SI | PA12 | SPI0_MOSI |
| SO | PA11 | SPI1_MISO |

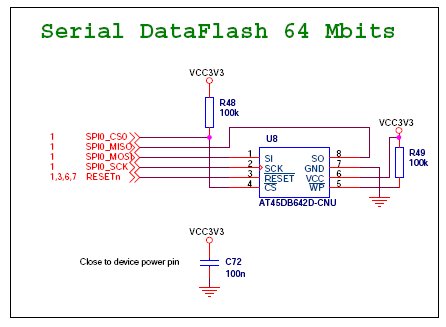

Figure 1. Schematics
