The Timer/Counter for Control Applications (TCC) module provides a set of timing and counting related functionality, such as the generation of periodic waveforms, the capturing of a periodic waveform's frequency/duty cycle, software timekeeping for periodic operations, waveform extension control, fault detection etc.
The counter size of the TCC modules can be 16- or 24-bit depending on the TCC instance. Refer SAM TCC Feature List and SAM D10/D11 TCC Feature List for details on TCC instances.
The TCC module for the SAM includes the following functions:
Generation of PWM signals
Generation of timestamps for events
General time counting
Waveform period capture
Waveform frequency capture
Additional control for generated waveform outputs
Fault protection for waveform generation

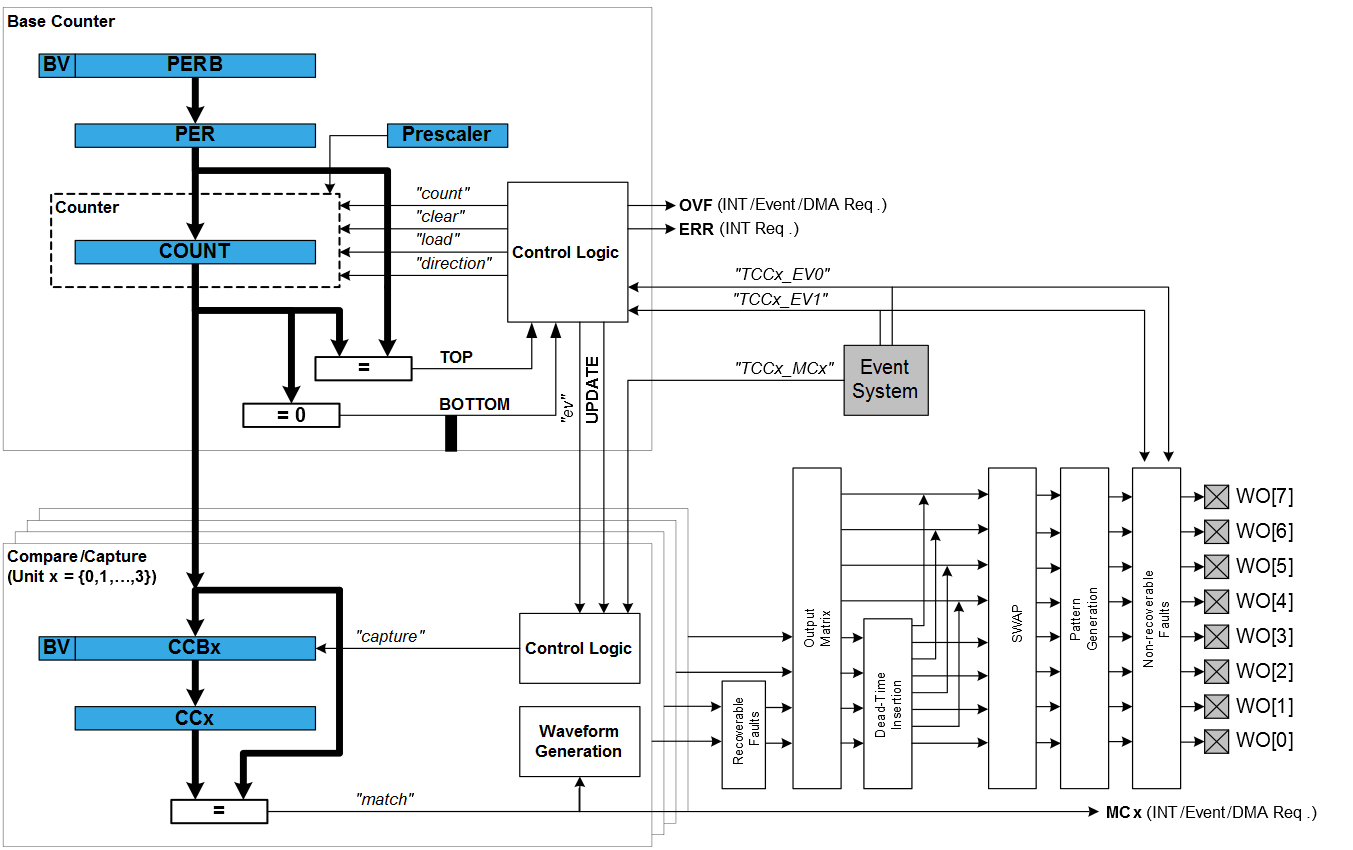

Figure 1 shows the overview of the TCC Module.
