TWI

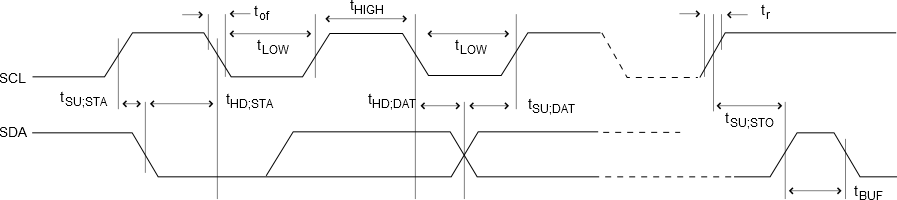

Figure 1. TWI - Timing Requirements
Table 1. TWI - Timing Characteristics
Symbol Description Condition Min. Typ. Max. Unit
fSCL SCL clock frequency   0 - 1000 kHz
VIH Input high voltage   0.7×VDD - - V
VIL Input low voltage   - - 0.3×VDD V
VHYS Hysteresis of Schmitt trigger inputs   0.1×VDD   0.4×VDD V
VOL Output low voltage Iload=20mA, Fast mode+ - - 0.2VDD V
Iload=3mA, Normal mode, VDD>2V - - 0.4V
Iload=3mA, Normal mode, VDD≤2V - - 0.2×VDD
IOL Low level output current fSCL≤400kHz, VOL=0.4V 3mA - - mA
fSCL≤1MHz, VOL=0.4V 20mA - -
CB Capacitive load for each bus line fSCL≤100kHz - - 400 pF
fSCL≤400kHz - - 400
fSCL≤1MHz - - 550
tR Rise time for both SDA and SCL fSCL≤100kHz - - 1000 ns
fSCL≤400kHz 20 - 300
fSCL≤1MHz - - 120
tOF Output fall time from VIHmin to VILmax 10pF < Capacitance of bus line < 400pF fSCL≤400kHz 20+0.1×CB - 300 ns
fSCL≤1MHz 20+0.1×CB - 120
tSP Spikes suppressed by Input filter   0 - 50 ns
IL Input current for each I/O pin 0.1×VDD<VI<0.9×VDD - - 1 µA
CI Capacitance for each I/O pin   - - 10 pF
RP Value of pull-up resistor fSCL≤100kHz (VDD-VOL(max)) /IOL - 1000ns/(0.8473×CB) Ω
fSCL≤400kHz - - 300ns/(0.8473×CB)
fSCL≤1MHz - - 120ns/(0.8473×CB)
tHD;STA Hold time (repeated) START condition fSCL≤100kHz 4.0 - - µs
fSCL≤400kHz 0.6 - -
fSCL≤1MHz 0.26 - -
tLOW Low period of SCL Clock fSCL≤100kHz 4.7 - - µs
fSCL≤400kHz 1.3 - -
fSCL≤1MHz 0.5 - -
tHIGH High period of SCL Clock fSCL≤100kHz 4.0 - - µs
fSCL≤400kHz 0.6 - -
fSCL≤1MHz 0.26 - -
tSU;STA Set-up time for a repeated START condition fSCL≤100kHz 4.7 - - µs
fSCL≤400kHz 0.6 - -
fSCL≤1MHz 0.26 - -
tHD;DAT Data hold time fSCL≤100kHz 0 - 3.45 µs
fSCL≤400kHz 0 - 0.9
fSCL≤1MHz 0 - 0.45
tSU;DAT Data setup time fSCL≤100kHz 250 - - ns
fSCL≤400kHz 100 - -
fSCL≤1MHz 50 - -
tSU;STO Setup time for STOP condition fSCL≤100kHz 4 - - µs
fSCL≤400kHz 0.6 - -
fSCL≤1MHz 0.26 - -
tBUF Bus free time between a STOP and START condition fSCL≤100kHz 4.7 - - µs
fSCL≤400kHz 1.3 - -
fSCL≤1MHz 0.5 - -
