Oscillators and Clocks

Operating conditions:

V_DD=3V, except where specified otherwise.

Table 1. 20MHz Internal Oscillator (OSC20M) Characteristics
Symbol	Description	Condition		Min.	Typ.	Max.	Unit
f_OSC20M	Accuracy with 16MHz and 20MHz Frequency Selection relative to the factory-stored frequency value	Factory calibrated V_DD=3V⁽¹⁾	T=[0, 70]°C, V_DD=[1.8, 4.5]V⁽³⁾	-2.0	-	2.0	%
		Factory calibrated V_DD=5V⁽¹⁾	T=[0, 70]°C, V_DD=[4.5, 5.5]V⁽³⁾	-2.0	-	2.0	%
	Accuracy with 16MHz and 20MHZ Frequency Selection	Factory calibrated	T=25°C, 3.0V	-3.0	-	3.0	%
			T=[0, 70]°C, V_DD=[1.8, 3.6]V⁽³⁾	-4.0	-	4.0
			Full operation range⁽³⁾	-5.0	-	5.0
f_CAL	User calibration range	OSC16M⁽²⁾		14.5	-	17.5	MHz
f_CAL	User calibration range	OSC20M⁽²⁾		18.5	-	21.5	MHz
%CAL	Calibration step size			-	1.5	-	%
DC	Duty cycle			-	50	-	%
T_start	Start-up time	Within 2% accuracy		-	8	-	µs

Note:

1.See also description of OSC20M on calibration.
2.Oscillator Frequencies above speed specification must be divided so that CPU clock always is within specification.
3.These values are based on characterization and not covered by production testlimits.

Table 2. 32.768kHz Internal Oscillator (OSCULP32K) Characteristics
Symbol	Description	Condition	Condition	Min.	Typ.	Max.	Unit
f_OSCULP32K	Accuracy	Factory calibrated	T=25°C, 3.0V	-3	-	3	%
			T=[0, 70]°C, V_DD=[1.8, 3.6]V⁽¹⁾	-10	-	+10
			Full operation range⁽¹⁾	-30	-	+30
DC	Duty cycle			-	50	-	%
T_start	Start-up time			-	250	-	µs

Note:

1.These values are based on characterization and not covered by production testlimits.

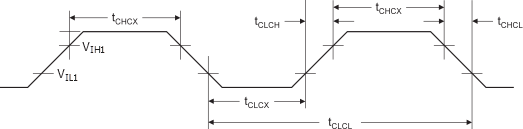

Figure 1. External Clock Waveform Characteristics

Table 3. External Clock Characteristics
Symbol	Description	Condition	V_DD=[1.8, 5.5]V		V_DD=[2.7, 5.5]V		V_DD=[4.5, 5.5]V		Unit
Symbol	Description	Condition	Min.	Max.	Min.	Max.	Min.	Max.	Unit
f_CLCL	Frequency		0	5.0	0.0	10.0	0.0	20.0	MHz
t_CLCL	Clock Period		200	-	100	-	50	-	ns
t_CHCX	High Time		80	-	40	-	20	-	ns
t_CLCX	Low Time		80	-	40	-	20	-	ns
