Pin Diagrams

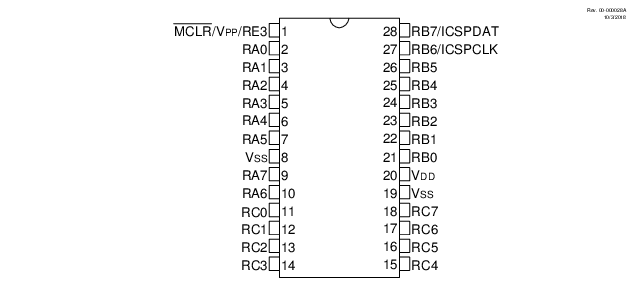

Figure 1. 28-pin SPDIP, SSOP, SOIC

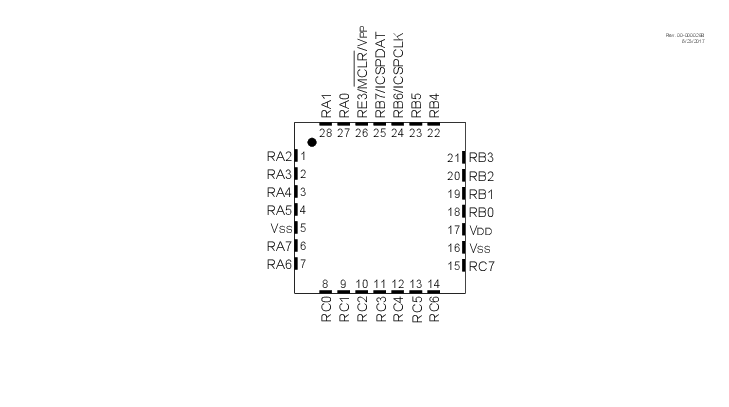

Figure 2. 28-pin QFN VQFN

Note: It is recommended that the exposed bottom pad be connected to V_SS, however it must not be the only V_SS connection to the device.

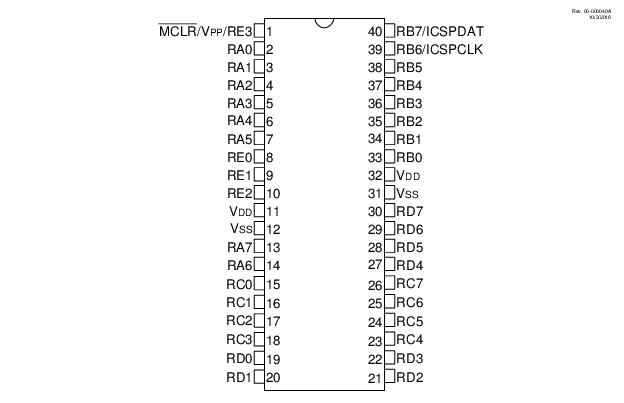

Figure 3. 40-pin PDIP

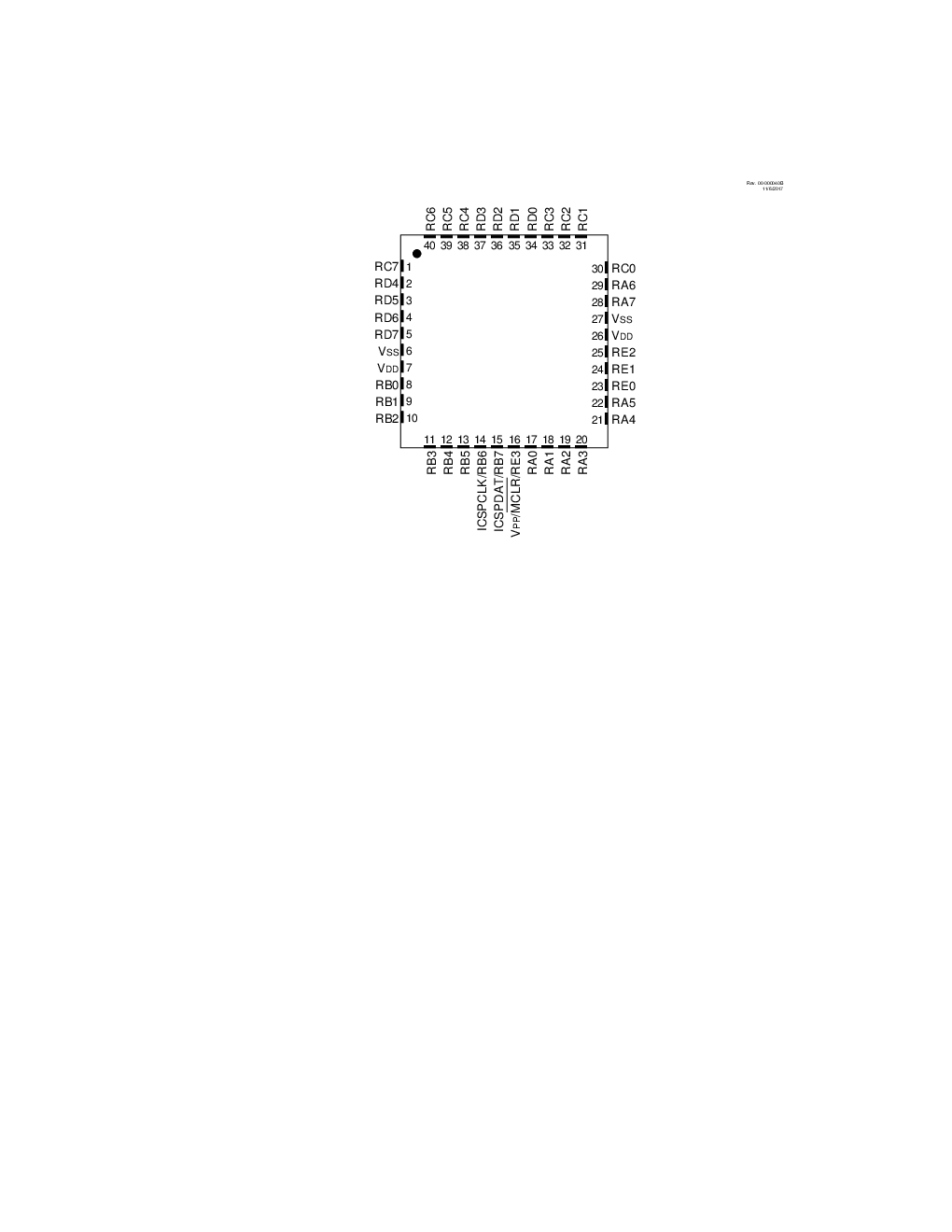

Figure 4. 40-pin QFN

Note: It is recommended that the exposed bottom pad be connected to V_SS, however it must not be the only V_SS connection to the device.

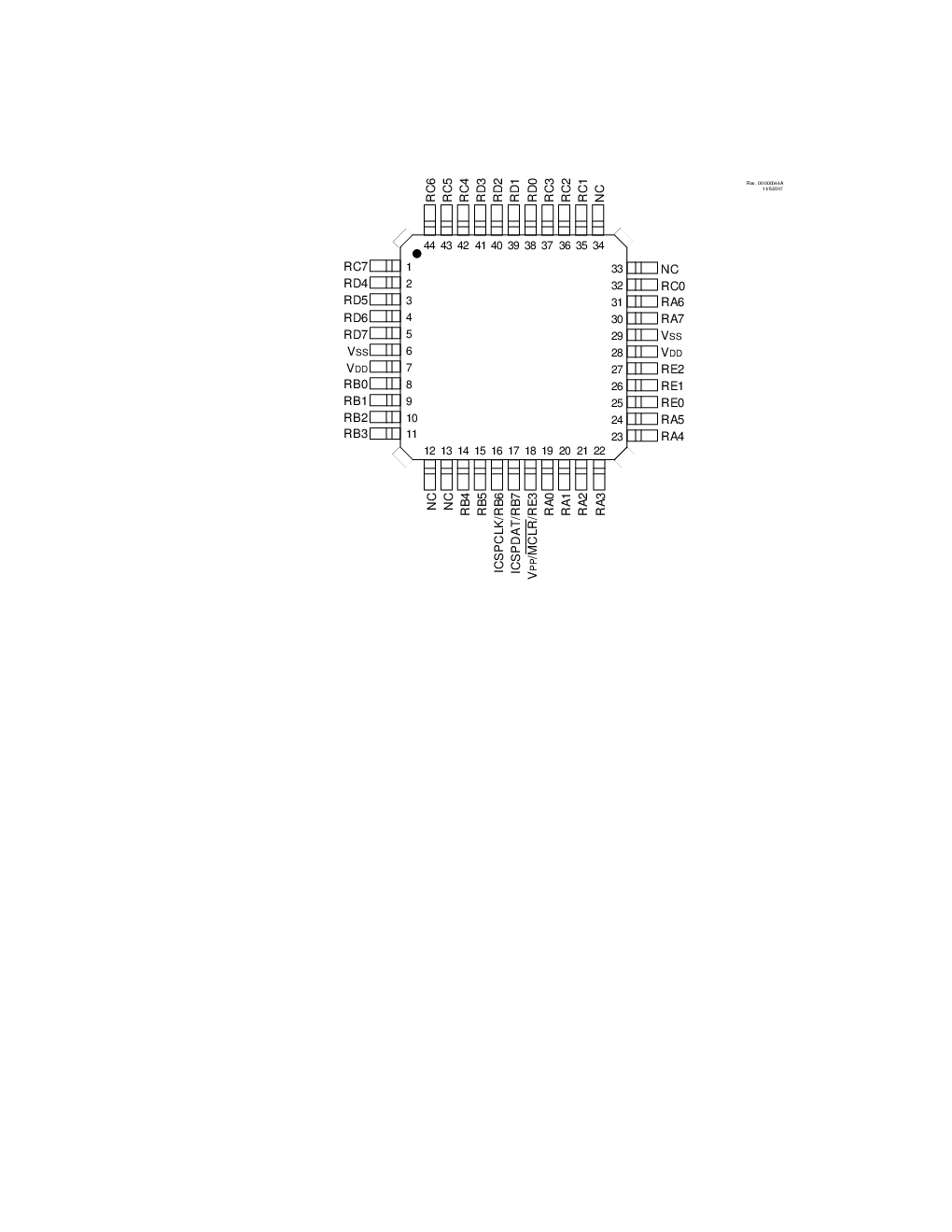

Figure 5. 44-pin TQFP
