It is a 4 common terminals by 40 segment terminals glass. It runs with ¼ duty and ⅓ bias conditions and is powered by 3.3 V. The typical frame rate is 64 Hz

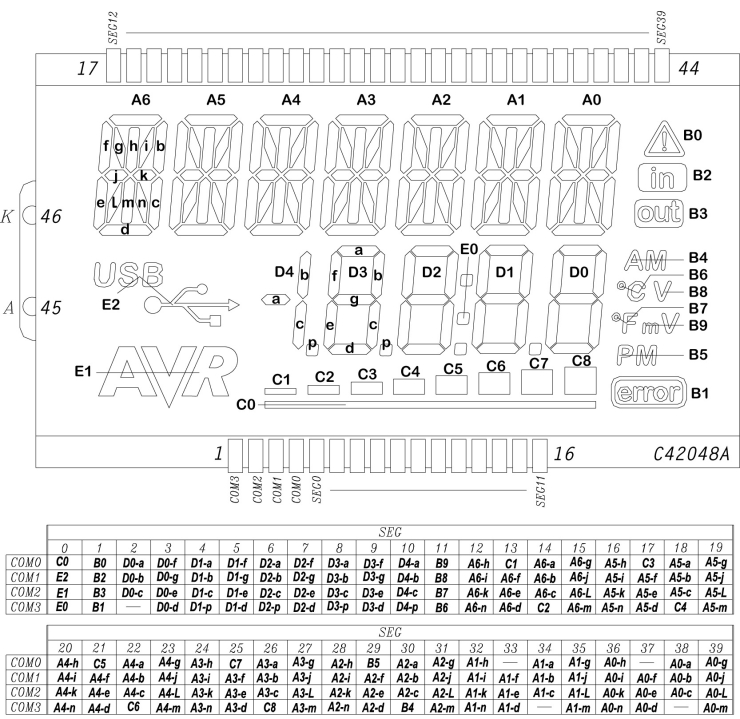

Figure 1. LCD segments (pixels) routing
It is a 4 common terminals by 40 segment terminals glass. It runs with ¼ duty and ⅓ bias conditions and is powered by 3.3 V. The typical frame rate is 64 Hz
