There are three standard Xplained Pro MCU board sizes; small, medium and large. The most commonly used sizes are medium and small.

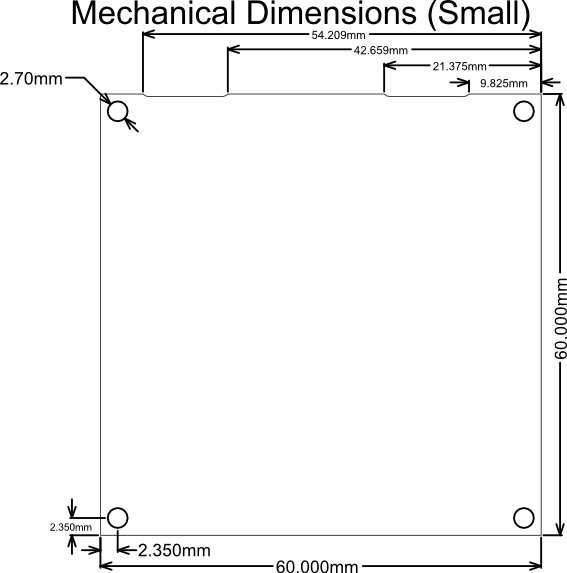

Figure 1. Small MCU Board Mechanical
Dimensions

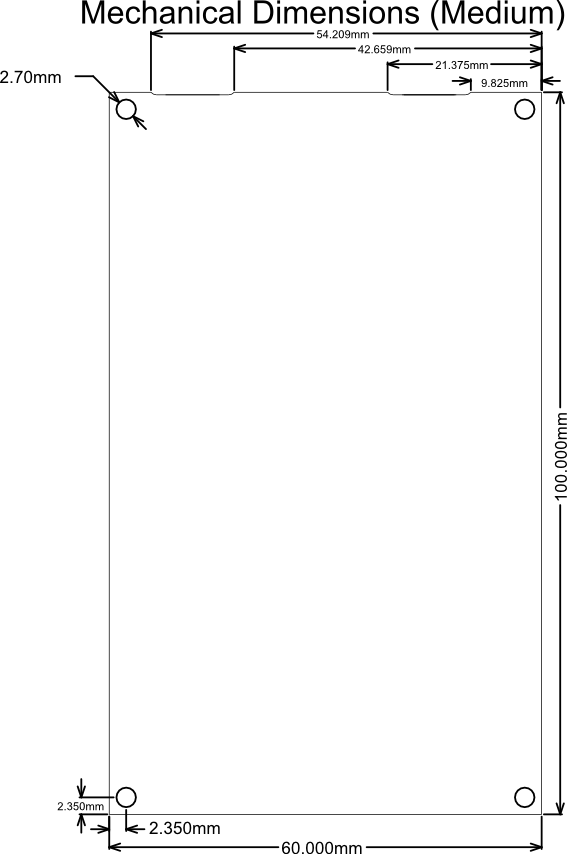

Figure 2. Medium MCU Board Mechanical
Dimensions

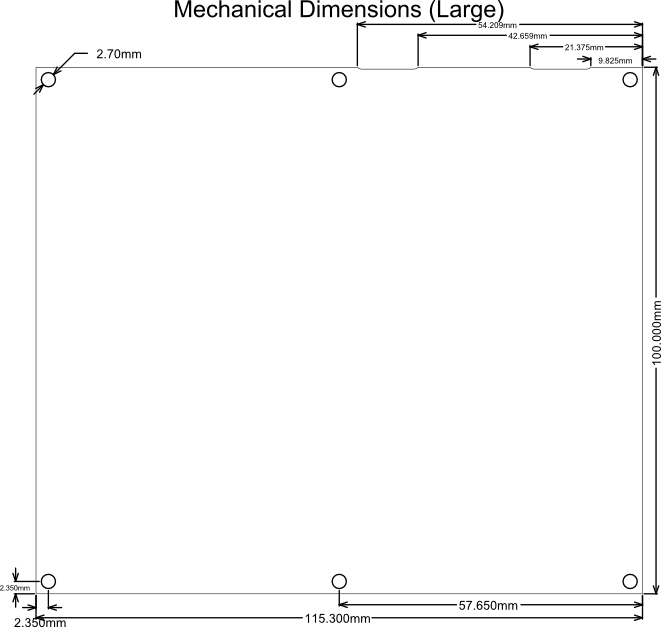

Figure 3. Large MCU Board Mechanical
Dimension
