Compared to the basic default extension, this extension adds a power connector to the design. The extension type can be used if access to the power inputs/outputs of the MCU board is required.
-
45mm x 50mm
-
One female standard expansion header
-
One female power header
-
ID system
-
Two mounting holes with GND
-
Two test jig holes
-
Two rubber feet

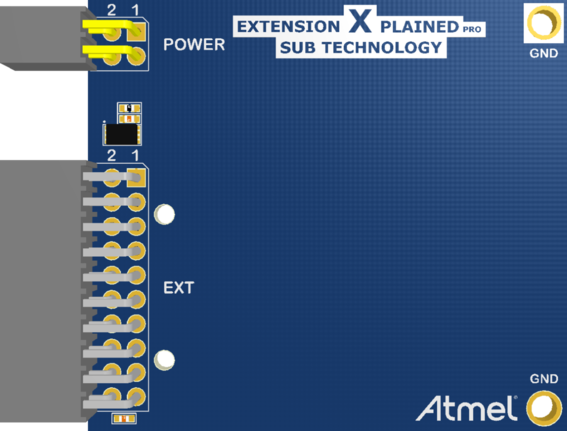

Figure 1. Standard Extension 2 3D View

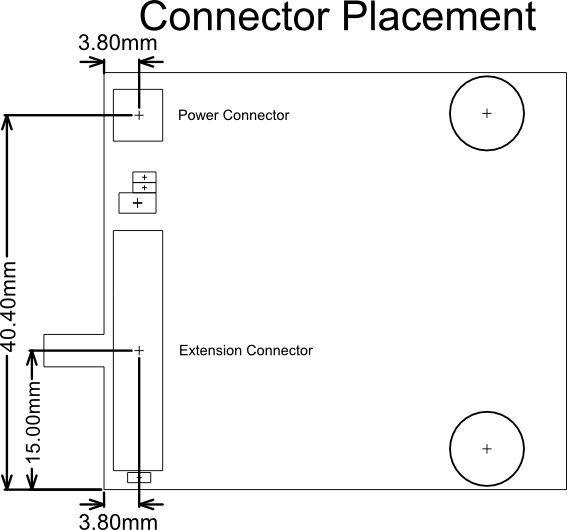

Figure 2. Standard Extension 2 Component Placement

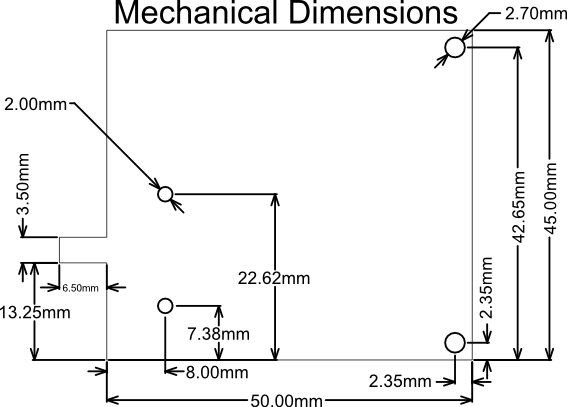

Figure 3. Standard Extension 2 Mechanical Dimensions
