No Target USB

When the target MCU does not offer a USB interface the power supply system can be reduced to the configuration shown below.

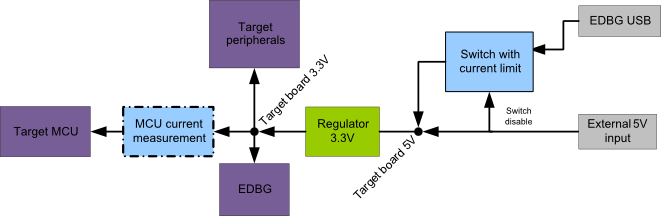

Figure 1. Power Supply Block Diagram for Boards with no Target USB
