This is the most basic extension module and will fit all MCU boards. This means that this extension is the preferred module when starting a design.
Features:
-
30mm x 50mm
-
One female standard extension header
-
ID system
-
Two mounting holes with GND
-
Two test jig holes
-
Two rubber feet

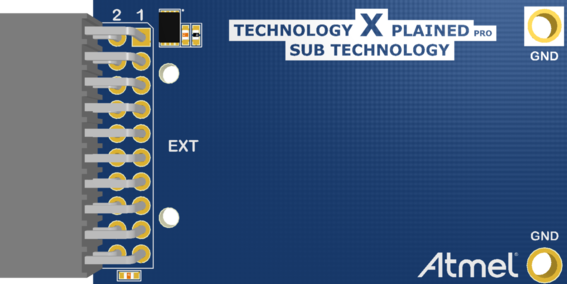

Figure 1. Standard Extension 1 3D View
Figure 2. Standard Extension 1 Component Placement

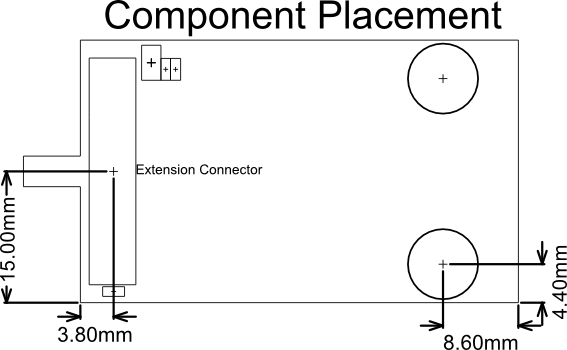

Figure 3. Standard Extension 1 Mechanical Dimensions
