This extension is the same as Extension 3 except for the additional power header.
-
80.55mm x 50mm
-
Two female standard extension headers
-
One female power header
-
ID system
-
Two mounting holes with GND
-
Two test jig holes
-
Two rubber feet

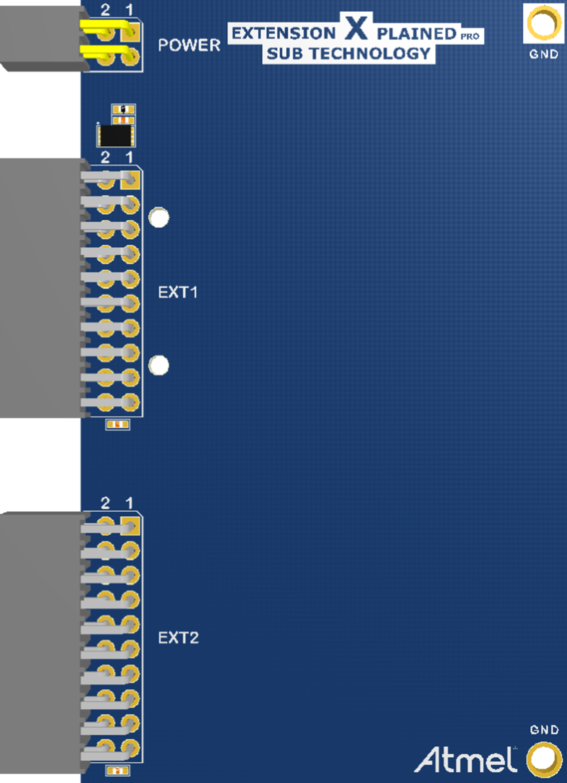

Figure 1. Standard Extension 4 3D View

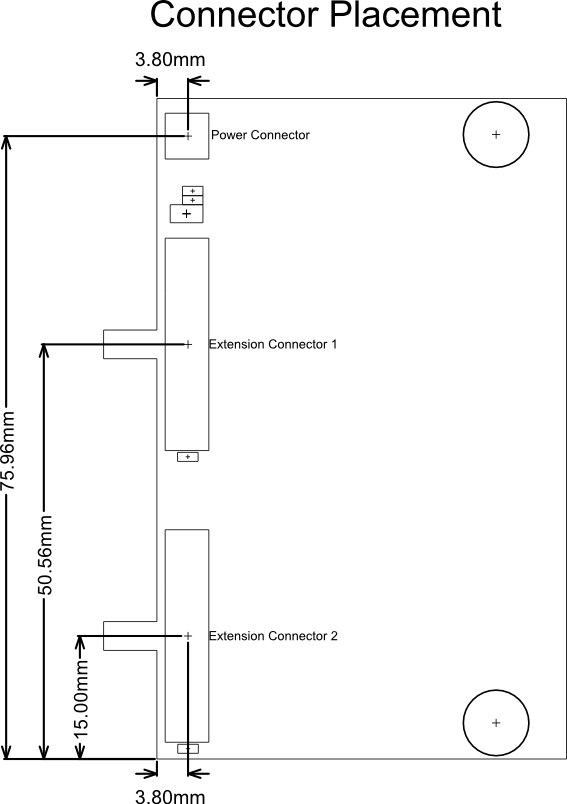

Figure 2. Standard Extension 4 Component Placement

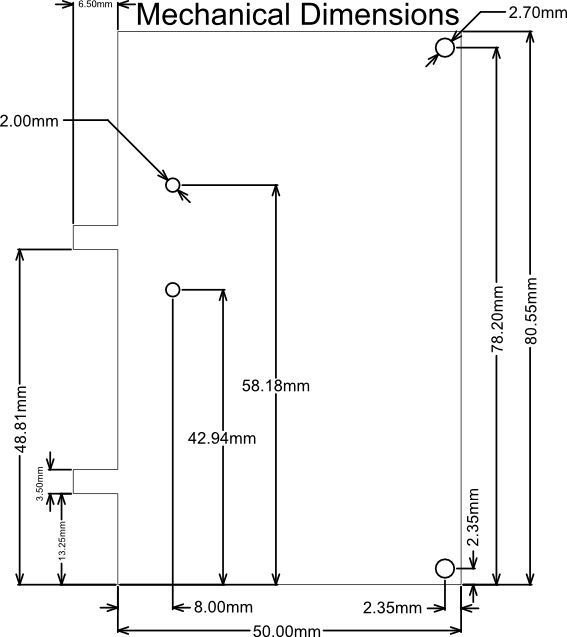

Figure 3. Standard Extension 4 Mechanical Dimensions
