Target USB

When a target MCU offers a USB device interface it is mandatory to implement this interface and hook it up to the power supply system.

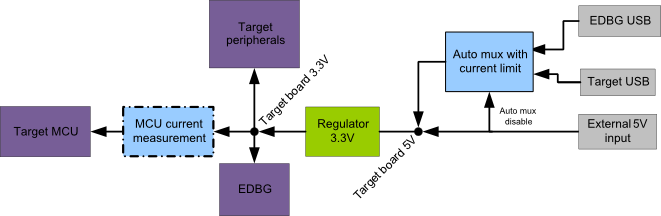

Figure 1. Power Supply Block Diagram for Boards with Target USB
