SOMNIUM DRT

The following steps describe how to use the output from Atmel START in SOMNIUM DRT.

Parent topic: Using Atmel START Output in External Tools

Exporting the Project from Atmel START

  1. On the Atmel START website, create a new project (Example or Board).
  2. Click on the Export Software Component button. For exporting project for Atmel Studio and Somonium IDE, select Atmel Studio.
  3. Click on DOWNLOAD PACK.
    An ‘atmelstart.atzip’ pack file will be downloaded.

Steps to Import Atmel START Output into SOMNIUM DRT

  1. Launch SOMNIUM DRT.

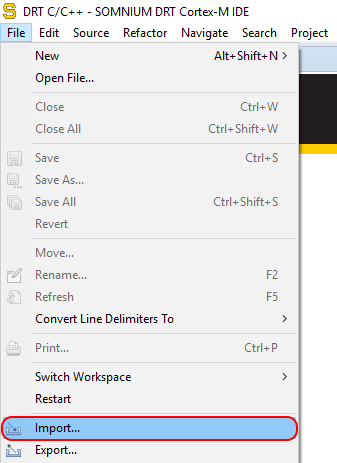

  2. Select File > Import to open the import dialog.
  3. In the General folder select Existing Projects into Workspace and click Next.
  4. Choose the Select Archive File radio button and browse to the ‘.atzip’ file exported from Atmel START.
  5. Click Next, then Finish, and a new DRT project will be created in the workspace with the imported files.
