- 1.

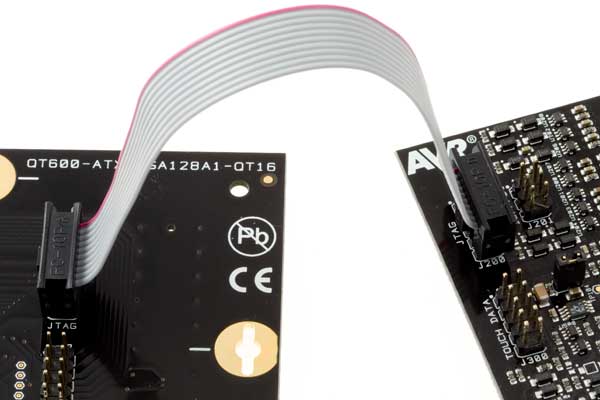

Connect a 10-wire cable between the JTAG headers on the QT600 and the JTAG header on the target MCU board. See picture below.
- 2.
Ensure that the target board has power, and that the voltage is within the operating range for the target device.
See also the Target Voltage VTG section.
See the Programming Dialog pages in the AVR Studio help file or the AVR32 Studio help for information on how to program the device using JTAG.
The pinout of the JTAG header is shown below:
