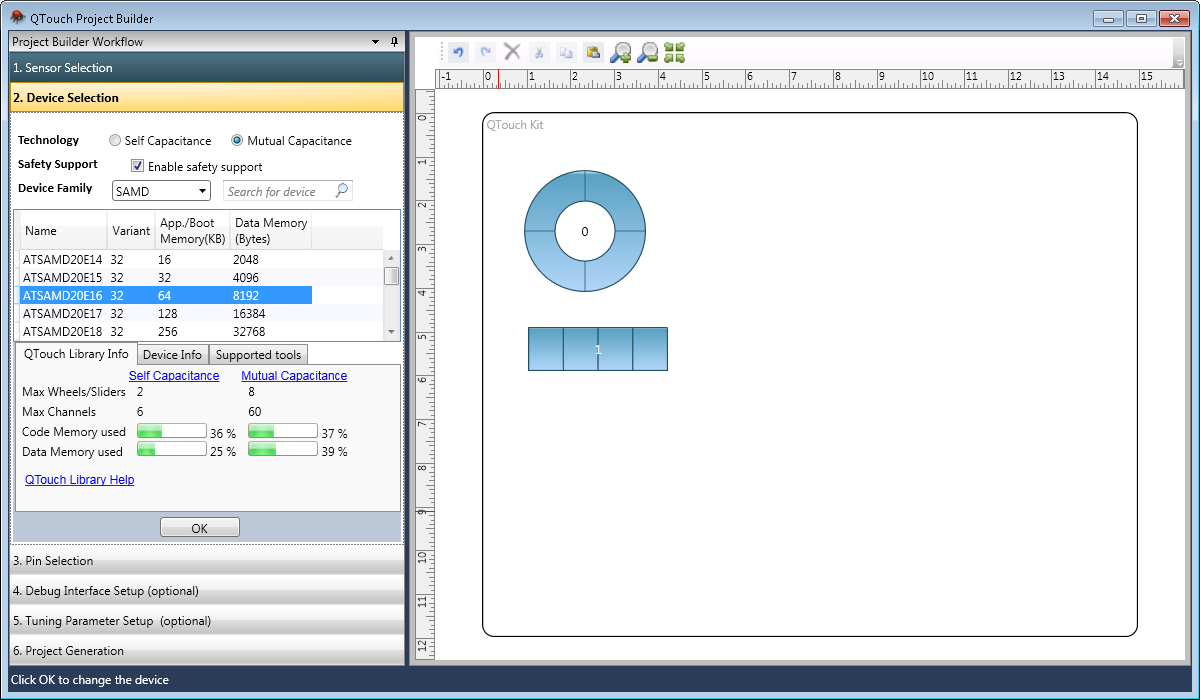

Device Selection

The device selection pane will be enabled after sensors are added to the sensor layout. The following can be chosen in this pane.

1. 1.

   Device

2. 2.

   Technology - among self capacitance and mutual capacitance

3. 3.

   safety support

One can review the parameters of the selection such as QTouch library info, device info and supported tools in the tabs below the device list.

The OK button has to be clicked to confirm the selection.
