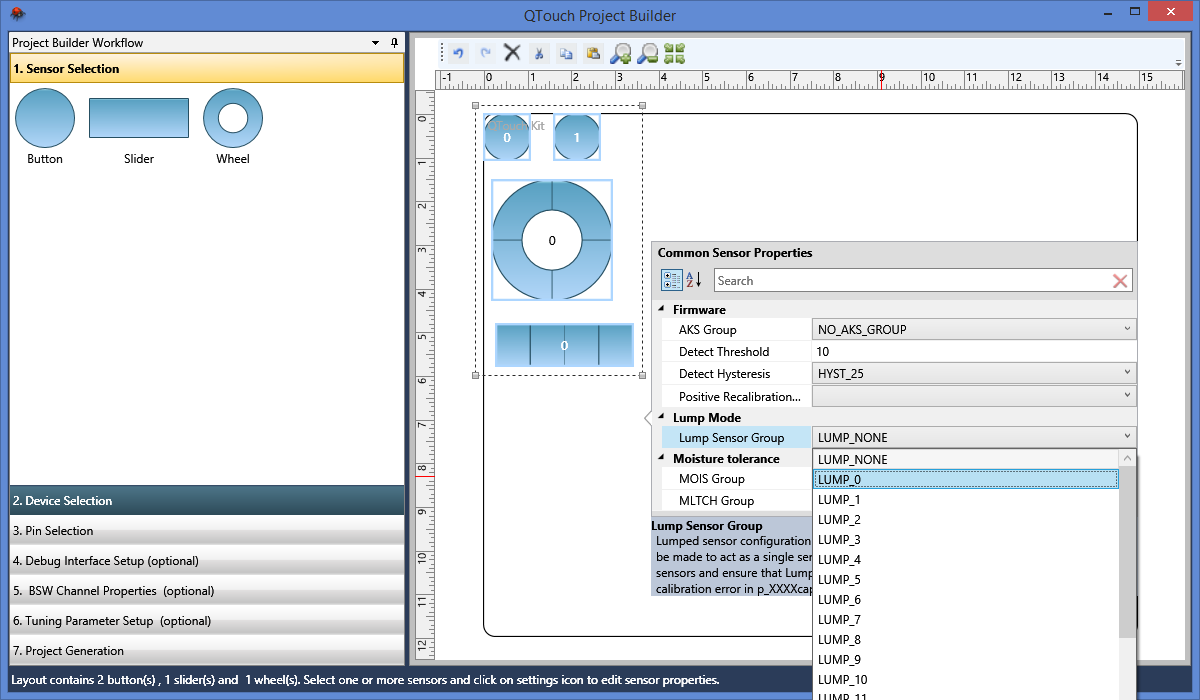

Lumped sensor configuration in a convolution/combination of multiple channels which can be made to act as a single sensor. The user is advised not to group a large number of sensors and ensure that Lump sensor does not result in state value = 0x80u as it denotes calibration error in p_XXXXcap_measure_data->p_sensors.state

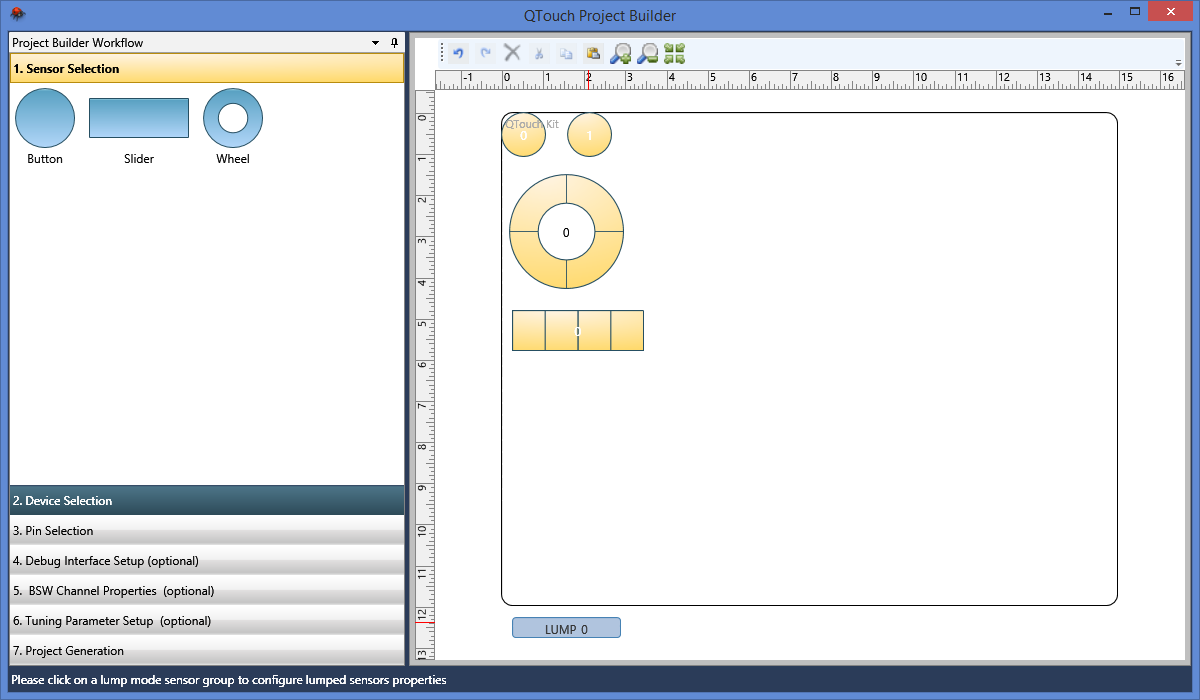

A Lump group appears in the layout as indicated in below figure.

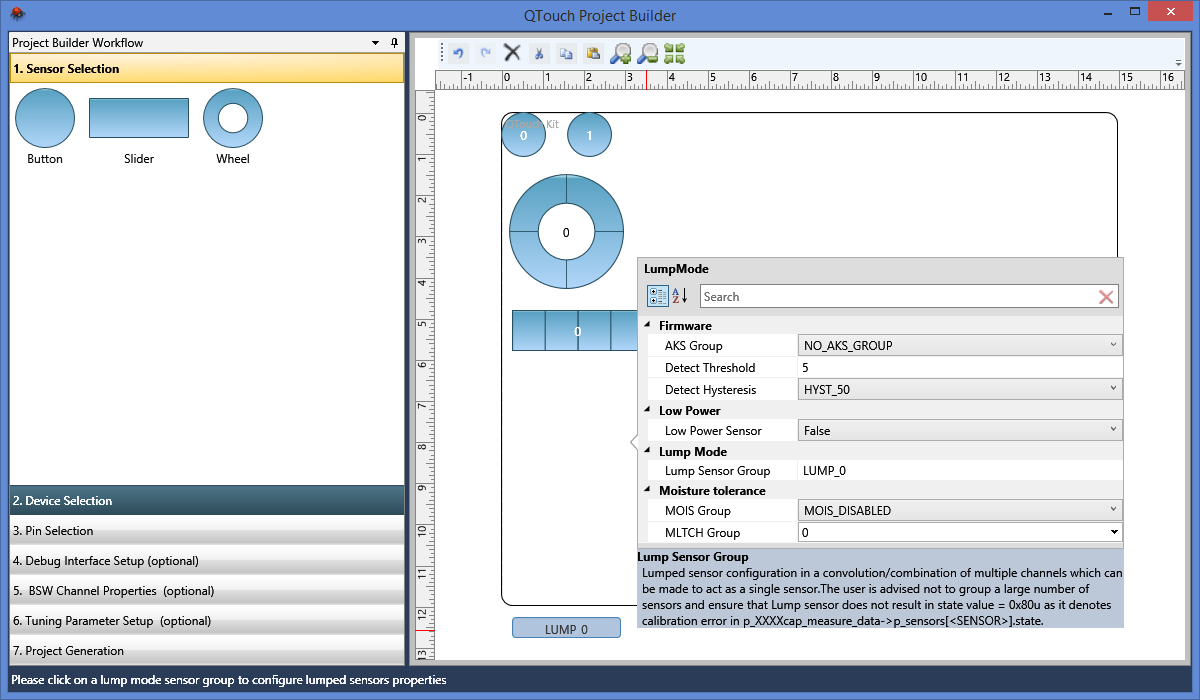

Properties specific to the lump group can be configured by clicking on the lump group. The sensors that are a part of the lump group are also highlighted.
