The QTouch Xplained uses four 10-pin headers to connect to XPLAIN. This makes it easy to use and provides a robust connection between the two boards. Refer to Figure 3.5 for an illustration how to connect the two boards together.
-
Attach the QTouch Xplained to the XPLAIN board. The QTouch Xplained is connected to the XPLAIN board by connecting the four 10-pin headers on the QTouch Xplained (female) to the four 10-pin headers on the XPLAIN (male).
-
The text orientation should be the same on both kits.
-
Ensure that all four pin headers are properly connected.

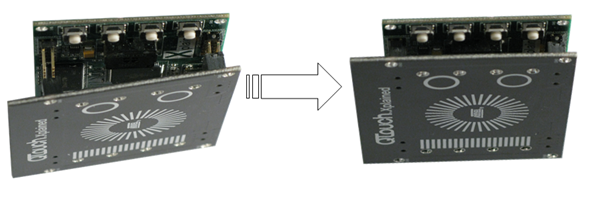

Figure 1. Connecting the QTouch Xplained to the XPLAIN board
