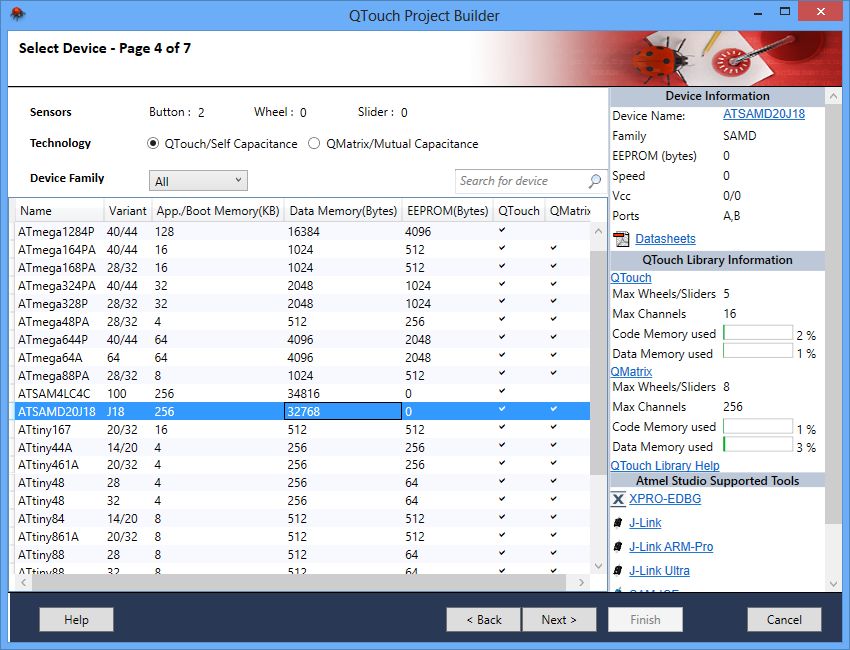

Device Selection Page provides the option to view the number of QTouch sensors such as Button, Wheel and Slider that was selected in the Kit Design Page.
QTouch sensors can be based on two sub-technologies, QTouch / Self Capacitance and QMatrix / Mutual Capacitance. The Project wizard supports both sub-technologies and provides two different approaches.
Device listbox shall display device details such as Device Name, Variant, Application/Boot Memory, Data Memory, EEPROM and supported technology. Data listing shall vary based on device family,number of selected sensors and technology.
Additionally user has the option to search for a particular device. Data listing shall display devices based on filters such as device family,number of selected sensors, technology and user input string in search box.
Additionally this page provides more information about device,library and supported tools.
