The Atmel mXT143E Xplained evaluation kit is a hardware platform to evaluate the Atmel ATMXT143E touchscreen controller.
The kit enables the user to easily get started using the maXTouch touchscreen controller and learn how to interface the ATMXT143E device in their own design.
Figure 1 shows the available features on the board.

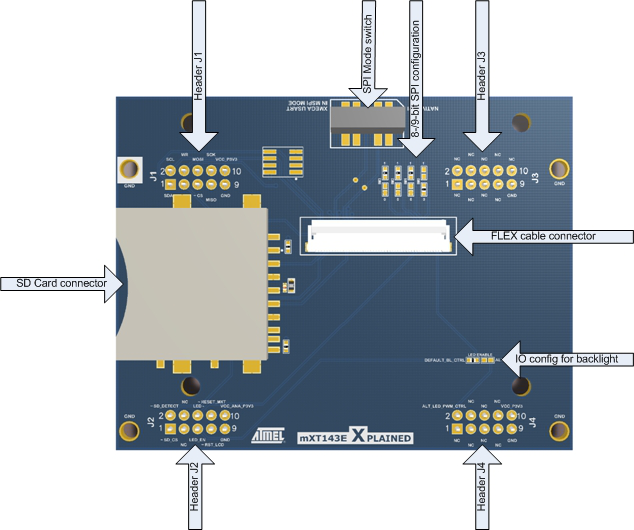

Figure 1. Overview of
mXT143E Xplained kit
