In Right Aligned mode the active part of the duty cycle is at the end of the
period. The outputs start in the Inactive state and then go active the number of
prescaled PWM clock periods specified by the P1 and P2 parameter registers before the
end of the period. Block and timing diagrams follow.

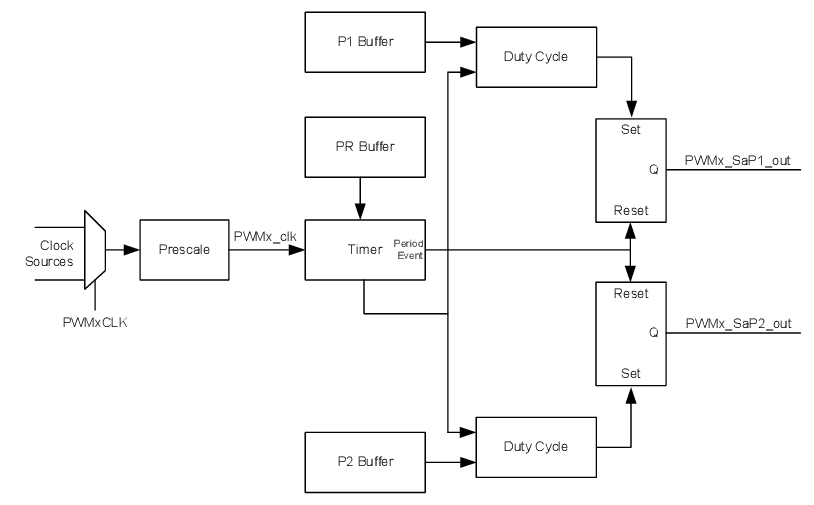

Figure 1. Right Aligned Block
Diagram

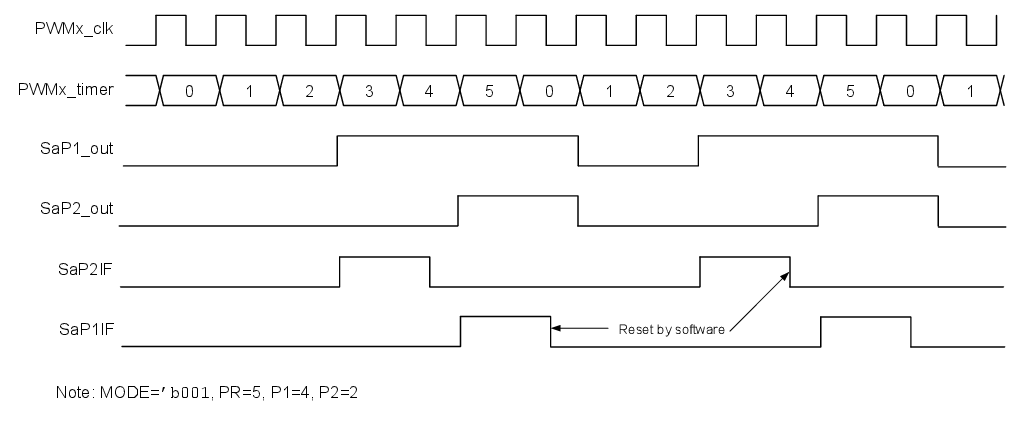

Figure 2. Right Aligned Timing
Diagram
