Resets

There are multiple ways to reset the device:

• Power-on Reset (POR)
• Brown-out Reset (BOR)
• Low-Power Brown-out Reset (LPBOR)
• MCLR Reset
• WDT Reset
• RESET instruction
• Stack Overflow
• Stack Underflow
• Programming mode exit
• Memory Execution Violation Reset
• Main LDO Voltage Regulator Reset
• Configuration Memory Reset

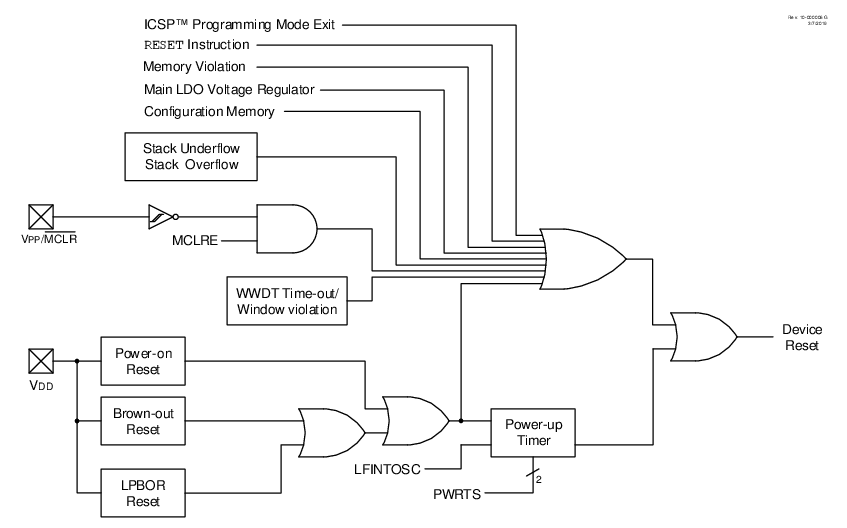

A simplified block diagram of the On-Chip Reset Circuit is shown in the block diagram below.

Figure 1. Simplified Block Diagram of On-Chip Reset Circuit

Note:

1. 1.See BOR Operating Modes table for BOR active conditions.
