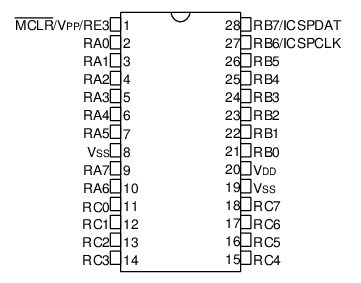

Figure 1.
28-Pin SPDIP
28-Pin SSOP
28-Pin SOIC

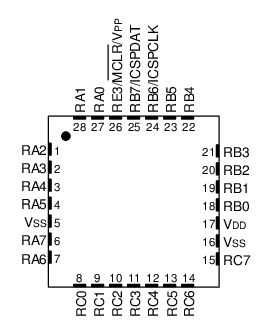

Figure 2.
28-Pin VQFN
Note: It is recommended that the exposed bottom pad be connected to VSS,
however it must not be the only VSS connection to the device.

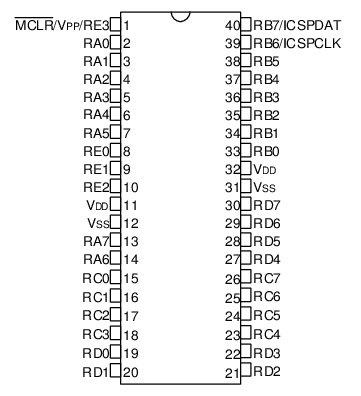

Figure 3.
40-Pin PDIP

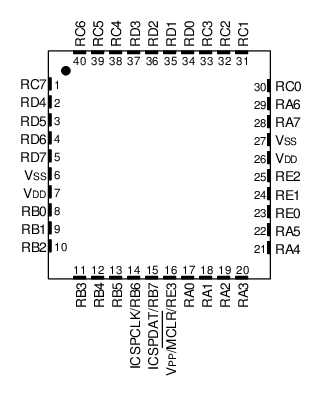

Figure 4.
40-Pin QFN
Note: It is recommended that the exposed bottom pad be connected to VSS,
however it must not be the only VSS connection to the device.

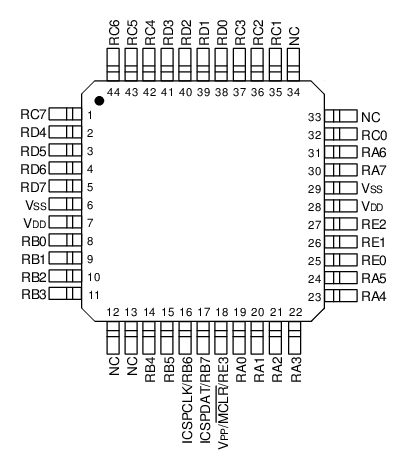

Figure 5.
44-Pin TQFP

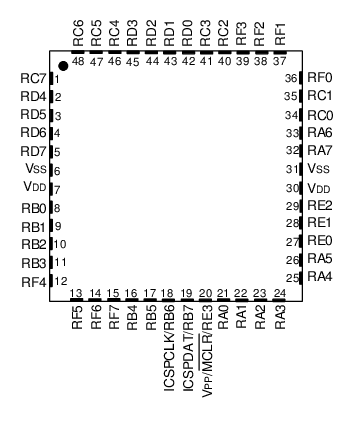

Figure 6.
48-Pin VQFN
Note: It is recommended that the exposed bottom pad be connected to VSS,
however it must not be the only VSS connection to the device.

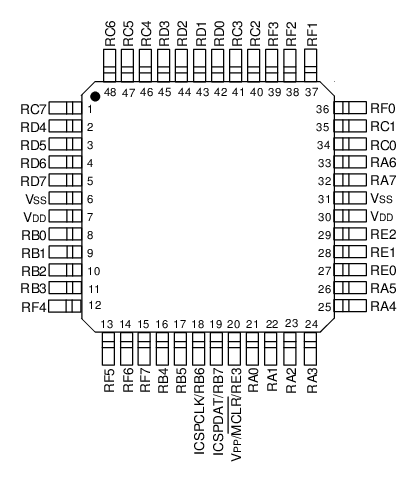

Figure 7.
48-Pin TQFP
