In Toggled Compare mode the duty cycle is alternating full PWM periods. The
output goes active when the PWM timer matches the P1 or P2 parameter value and goes
inactive in the next period at the same match point. Block and timing diagrams
follow.

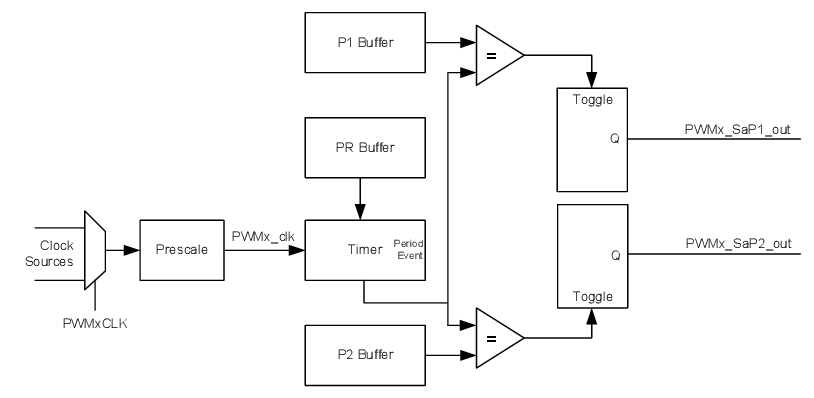

Figure 1. Toggled Compare Block
Diagram

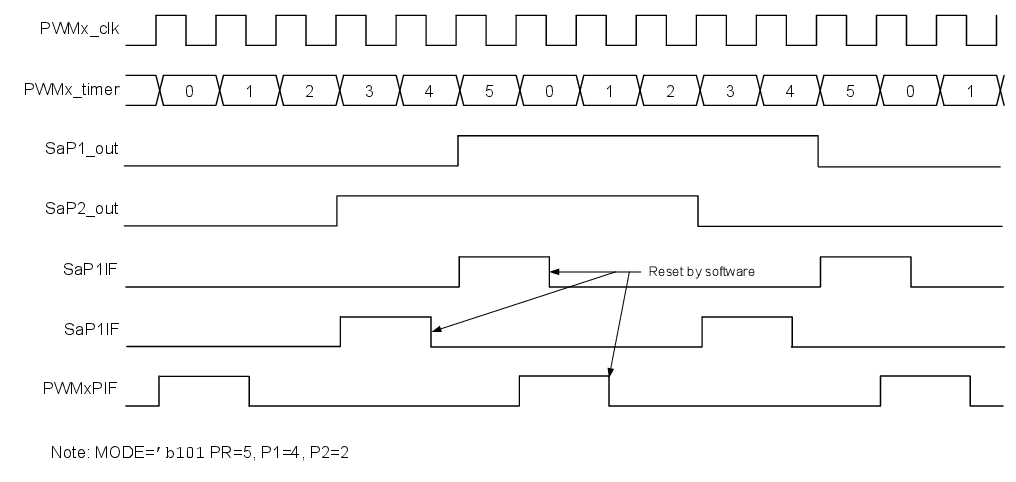

Figure 2. Toggled Compare Timing
Diagram
