When BMODE = 1, data transfers will occur whenever both the
receive FIFO is not full and there is data present in the transmit FIFO. In practice, as
long as the receive FIFO is not full, data will be transmitted/received as soon as the
SPIxTXB register is written to, matching the functionality of SPI (MSSP) modules on
older 8-bit Microchip devices. The SPIxTCNT will decrement with each transfer. However,
when SPIxTCNT is zero the next transfer is not inhibited and the corresponding SPIxTCNT

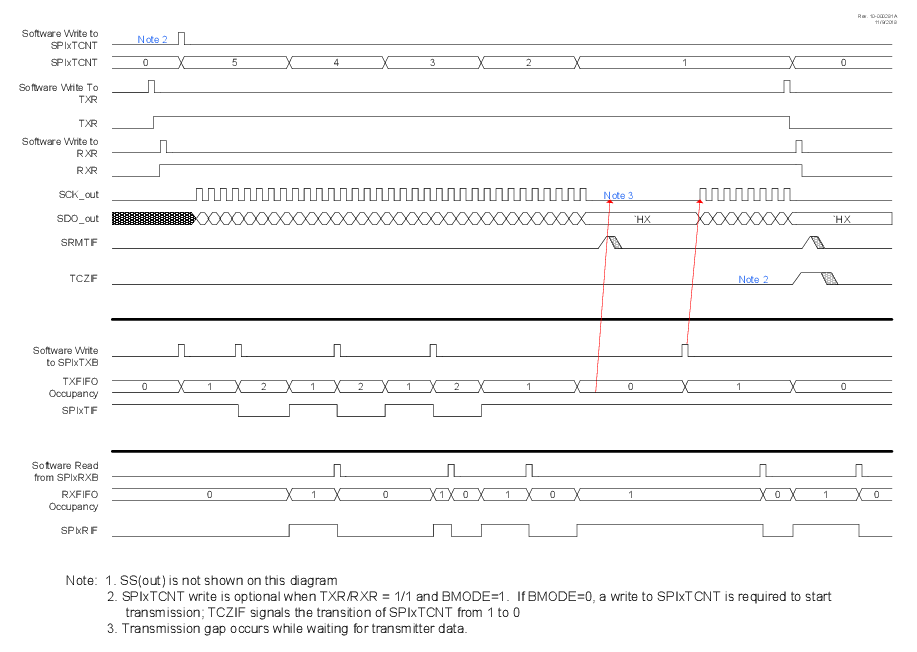

decrement will cause the count to roll over to the maximum value. The following figure
shows an example of a communication using this mode.
1, TXR = 1
When BMODE = 0, the transfer counter (SPIxTCNT) must also be
written to before transfers will occur. Transfers will cease when the transfer counter
reaches ‘0’. For example, if SPIxTXB is written twice and then
SPIxTCNTL is written with ‘3’ then the transfer will start with the SPIxTCNTL write. The
two bytes in the TXFIFO will be sent after which the transfer will suspend until the
third and last byte is written to SPIxTXB.
