The following visual reference describes the sequence of events when copying ADC results to a GPR location. The ADC Interrupt flag can be chosen as the source hardware trigger, the source address can be set to point to the ADC Result registers (e.g., at 0x3EEF), the destination address can be set to point to any GPR location of our choice (e.g., at 0x100).

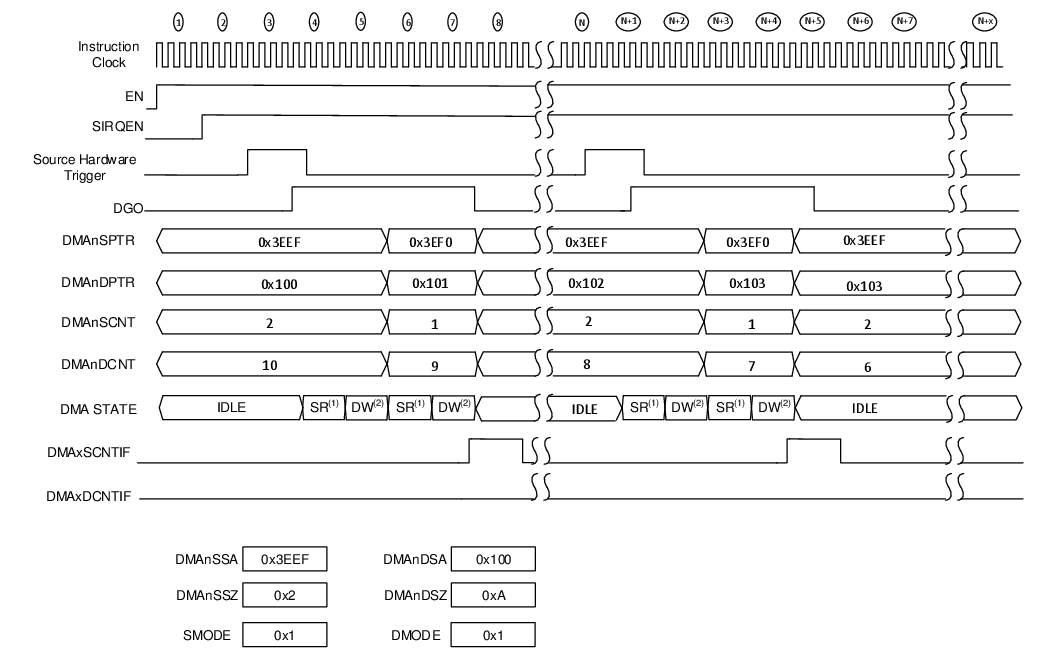

Figure 1. SFR Space to GPR Space
Transfer
Note:
- 1.SR - Source Read
- 2.DW - Destination Write
