The figure and table below shows the relation between the common
terminals, segment terminals, and the segments on the display.

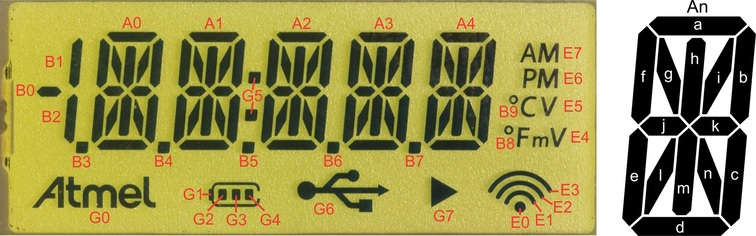

Figure 1. YMCC42412AAAFDCL Segments
| COM0 | COM1 | COM2 | COM3 | Comments | |
|---|---|---|---|---|---|
| SEG0 | G1 | G2 | G4 | G3 | Atmel logo, four stage battery-, Dot-point-, usb-, and play indicator |
| SEG1 | G0 | G6 | G7 | G5 | |
| SEG2 | E7 | E5 | E3 | E1 | Four stage wireless-, AM-, PM-, Volt-, and milli-volt indicator |
| SEG3 | E6 | E4 | E2 | E0 | |
| SEG4 | A0-h | A0-i | A0-k | A0-n | 1st 14-segment character |
| SEG5 | B3 | A0-f | A0-e | A0-d | |
| SEG6 | A0-a | A0-b | A0-c | B4 | |
| SEG7 | A0-g | A0-j | A0-l | A0-m | |
| SEG8 | A1-h | A1-i | A1-k | A1-n | 2nd 14-segment character |
| SEG9 | B2 | A1-f | A1-e | A1-d | |
| SEG10 | A1-a | A1-b | A1-c | B5 | |
| SEG11 | A1-g | A1-j | A1-l | A1-m | |
| SEG12 | A2-h | A2-i | A2-k | A2-n | 3rd 14-segment character |
| SEG13 | B1 | A2-f | A2-e | A2-d | |
| SEG14 | A2-a | A2-b | A2-c | B6 | |
| SEG15 | A2-g | A2-j | A2-l | A2-m | |
| SEG16 | A3-h | A3-i | A3-k | A3-n | 4th 14-segment character |
| SEG17 | B0 | A3-f | A3-e | A3-d | |
| SEG18 | A3-a | A3-b | A3-c | B7 | |
| SEG19 | A3-g | A3-j | A3-l | A3-m | |
| SEG20 | A4-h | A4-i | A4-k | A4-n | 5th 14-segment character. Celsius and Fahrenheit indicator. |
| SEG21 | B8 | A4-f | A4-e | A4-d | |
| SEG22 | A4-a | A4-b | A4-c | B9 | |
| SEG23 | A4-g | A4-j | A4-l | A4-m |
