This application example uses the Single-ended mode with averaging and dual Sample-and-Hold mode.
Several different AFEC configurations have been implemented into a 4-stage
state machine by using four different AFEC configuration functions as described
below:
- Case 1: Single-ended with software trigger
- Case 2: Single-ended with software trigger with averaging ON
- Case 3: Single-ended, dual Sample-and-Hold with software trigger
- Case 4: Single-ended, dual Sample-and-Hold with software trigger with averaging ON

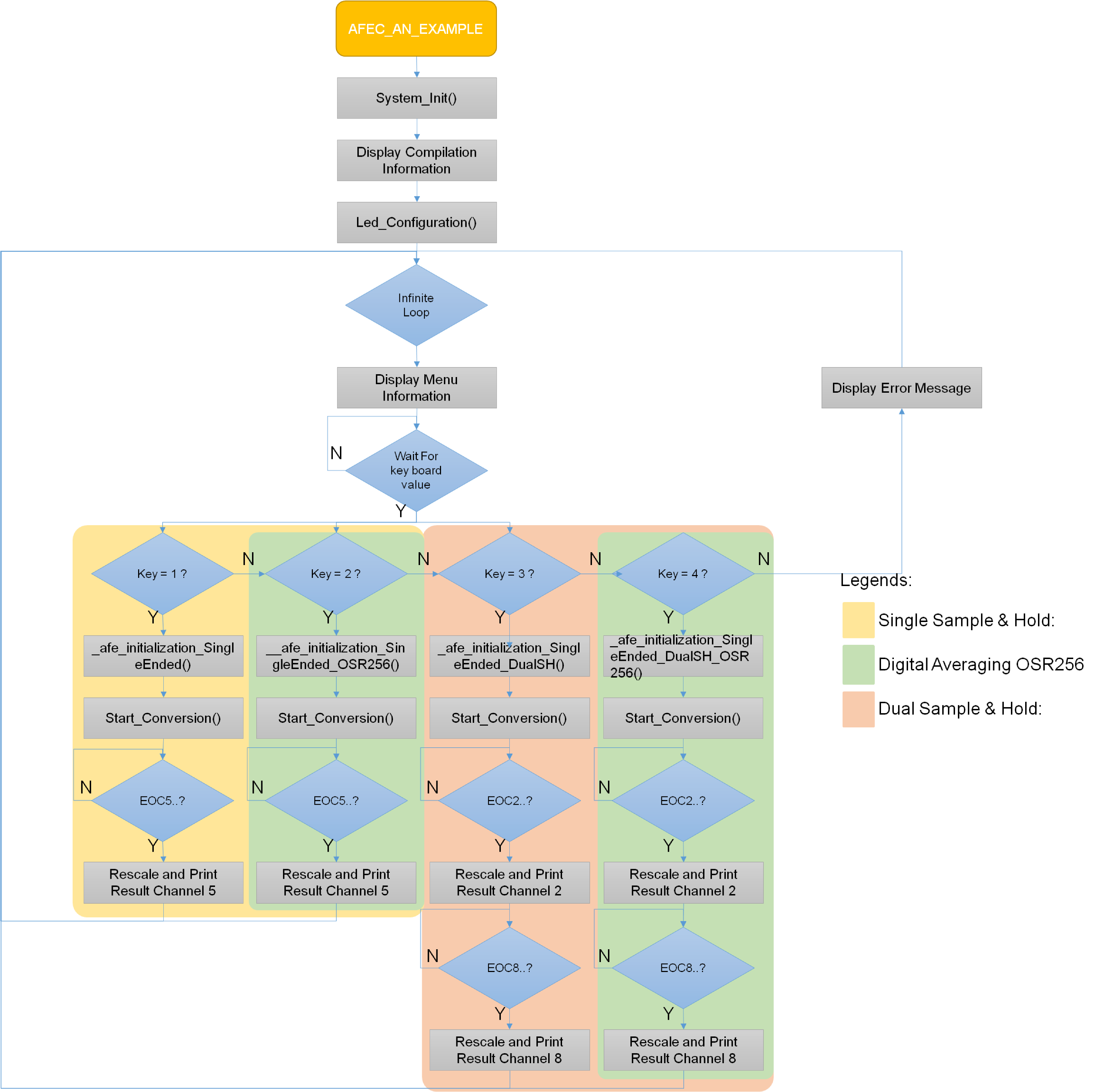

Figure 1. Application Example Flow Chart
