SPI Timing Characteristics

Table 1. SPI Timing Parameters
Description Mode Min. Typ Max Units
SCK period Master - See Table. Relationship Between SCK and the Oscillator Frequency in "SPCR – SPI Control Register" - ns
SCK high/low Master - 50% duty cycle -
Rise/Fall time Master - 3.6 -
Setup Master - 10 -
Hold Master - 10 -
Out to SCK Master - 0.5 • tsck -
SCK to out Master - 10 -
SCK to out high Master - 10 -
SS low to out Slave - 15 -
SCK period Slave 4 • tck - -
SCK high/low(1) Slave 2 • tck - -
Rise/Fall time Slave - - 1600
Setup Slave 10 - -
Hold Slave tck - -
SCK to out Slave - 15 -
SCK to SS high Slave 20 - -
SS high to tri-state Slave - 10 -
SS low to SCK Slave 2 • tck - -
Note:
  1. In SPI Programming mode the minimum SCK high/low period is:

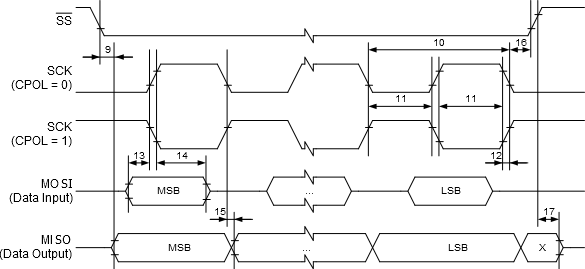

Figure 1. SPI Interface Timing Requirements (Master Mode)

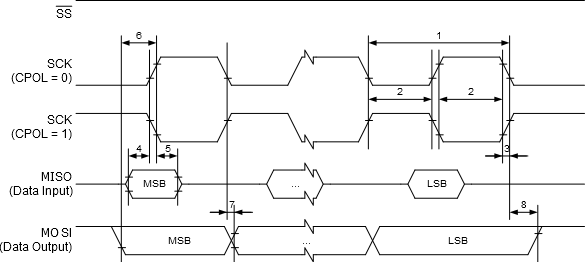

Figure 2. SPI Interface Timing Requirements (Slave Mode)
