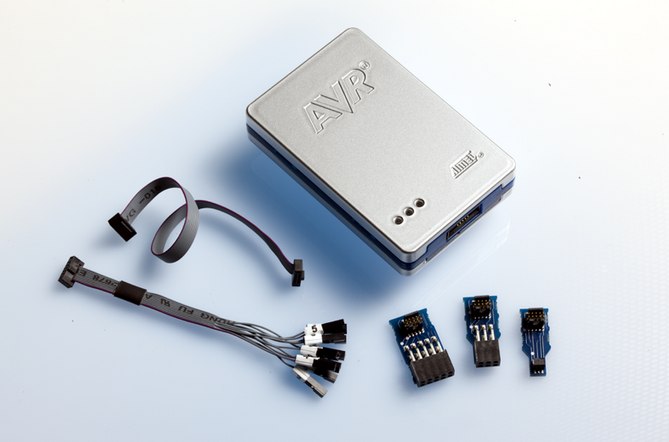

Atmel JTAGICE3 Features

• Fully compatible with Atmel Studio
• Supports programming and debugging of all Atmel AVR UC3 32-bit microcontrollers
• Supports programming and debugging of all 8-bit AVR XMEGA devices
• Supports programming and debugging of all 8-bit Atmel megaAVR and tinyAVR devices with OCD
• Supports programming and debugging of all SAM ARM Cortex-M based microcontrollers
• Target operating voltage range of 1.65V to 5.5V
• Draws less than 3mA from target VTref during operation
• Supports JTAG clock frequencies from 32kHz to 15MHz
• Supports PDI clock frequencies from 32kHz to 10MHz
• Supports debugWIRE baud rates from 4kbit/s to 0.5Mbit/s
• Supports aWire baud rates from 7.5kbit/s to 7.5Mbit/s
• Supports SPI clock frequencies from 8kHz to 1.875MHz
• Supports UPDI baud rates from up to 750kbit/s
• Supports SWD clock frequencies from 32kHz to 2MHz
• USB 2.0 high-speed host interface
• ITM serial trace capture at up to 1MB/s
• Supports 10-pin 50-mil JTAG connector, as well as 10-pin 100mil JTAG, 6-pin 50-mil SPI, and 6-pin 100-mil SPI interfaces using adapters
