Get the STK600 Starter Kit

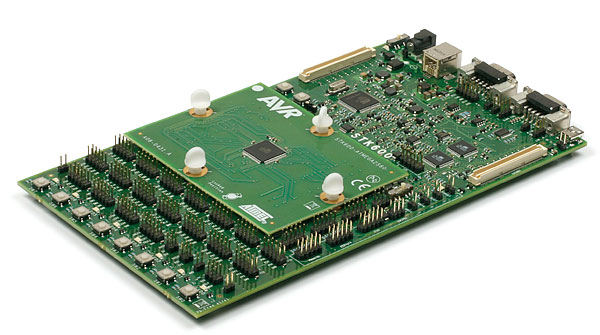

Figure 1. STK600 Starter Kit

Table 1. STK600 Device Support for tinyAVR^® 0-series
Device	Routing Card	Socket Card
ATtiny204	STK600-RC020T-104	STK600-SOIC
ATtiny404	STK600-RC020T-104	STK600-SOIC
ATtiny406	STK600-RC020T-104	STK600-SOIC
ATtiny804	STK600-RC020T-104	STK600-SOIC
ATtiny806	STK600-RC020T-104	STK600-SOIC
ATtiny807	STK600-RC024T-103	STK600-QFN24
ATtiny1604	STK600-RC020T-104	STK600-SOIC
ATtiny1606	STK600-RC020T-104	STK600-SOIC
ATtiny1607	STK600-RC024T-103	STK600-QFN24

For device support for other devices, refer to: http://www.microchip.com/STK600_Starter_Kit-Users_Guide

Web page: http://www.microchip.com/ATSTK600

Get the kit: https://www.microchipdirect.com/product/ATSTK600

Document/file:

STK600 User Guide (.pdf)

Key features

AVR^® Studio 4/AVR32 Studio/AVR Studio 5/Atmel Studio Compatible
USB Interface to PC for Programming and Control
Powered from USB Bus or from an External 10-15V DC Power Supply
Adjustable Target V_CC (0-5.5V)
Two Adjustable Reference Voltages with High Accuracy (0-5.0V, 10 mV res.)
Clock Oscillator, Adjustable On-The-Fly from Atmel Studio (0-50 MHz, 0.1% res.)
Serial In-System Programming (ISP) of tinyAVR and megaAVR^® Devices
PDI Programming of AVR XMEGA^® Devices
JTAG Programming of megaAVR, AVR XMEGA, and AVR UC3 Devices
aWire Programming of AVR UC3 Devices
ISP and JTAG Programming of AVR Devices in External Target Systems
Flexible Routing and Socket Card System for Easy Mounting of all Supported Devices
Eight Push Buttons for General Use
Eight LEDs for General Use
All AVR I/O Ports are Easily Accessible through Pin Header Connectors
Expansion Connectors for Plug-In Modules and Prototyping Area
On-Board 4 Mb DataFlash for Nonvolatile Data
USB mini-AB (On-The-Go) Connector for AVR Devices with USB
PHY and DSUB-9 Connector for RS-232 Interface
PHY and DSUB-9 Connector for CAN Bus
PHY and Header for LIN Bus
Device Board with an ATmega2560 AVR Microcontroller Included

The STK600 User Guide describes how to power the kit and includes detailed information about board components, extension interface, and the hardware description.
