The QT600 system is based on three components connected together.
-
QT600 Interface Board
-
Touch MCU board
-
Touch Sensor board

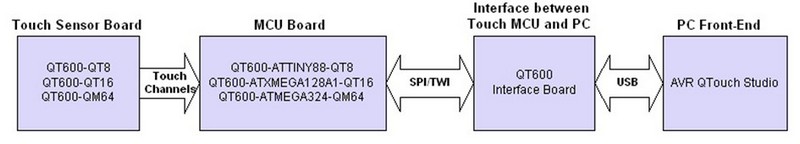

Figure 1. QT600 System block diagram
These components are described further below.
