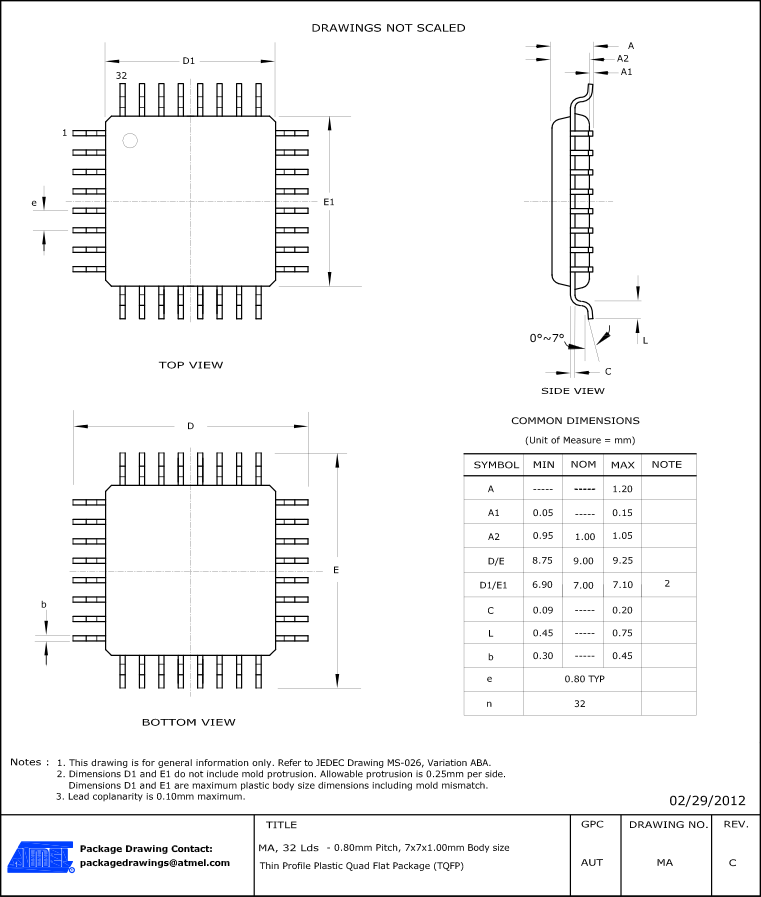

32 pin TQFP
Table 1. Device and Package Maximum Weight
100
mg
Table 2. Package Charateristics
Moisture Sensitivity Level
MSL3
Table 3. Package Reference
JEDEC Drawing Reference
MS-026
JESD97 Classification
E3
Parent topic:
Package Drawings
