Configuration

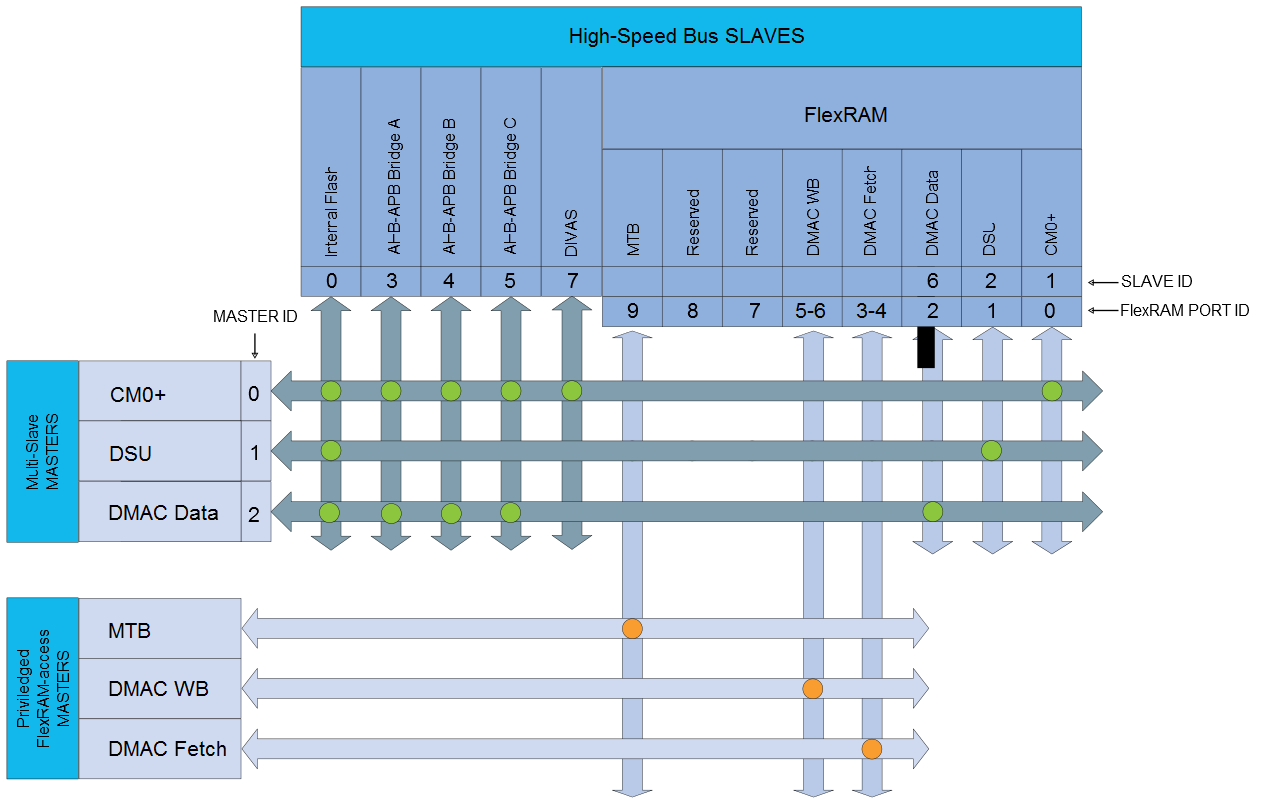

Figure 1. Master-Slave Relation High-Speed Bus Matrix
Table 1. Bus Matrix Masters
Bus Matrix Masters Master ID
CM0+ - Cortex M0+ Processor 0
DSU - Device Service Unit 1
DMAC - Direct Memory Access Controller / Data Access 2
Table 2. Bus Matrix Slaves
Bus Matrix Slaves Slave ID
Internal Flash Memory 0
SRAM Port 4 - CM0+ Access 1
SRAM Port 6 - DSU Access 2
AHB-APB Bridge A 3
AHB-APB Bridge B 4
AHB-APB Bridge C 5
SRAM Port 5 - DMAC Data Access 6
DIVAS - Divide Accelerator 7
Table 3. SRAM Port Connections
SRAM Port Connection Port ID Connection Type
CM0+ - Cortex M0+ Processor 0 Bus Matrix
DSU - Device Service Unit 1 Bus Matrix
DMAC - Direct Memory Access Controller - Data Access 2 Bus Matrix
DMAC - Direct Memory Access Controller - Fetch Access 0 3 Direct
DMAC - Direct Memory Access Controller - Fetch Access 1 4 Direct
DMAC - Direct Memory Access Controller - Write-Back Access 0 5 Direct
DMAC - Direct Memory Access Controller - Write-Back Access 1 6 Direct

Reserved

 7 Direct

Reserved

 8 Direct
MTB - Micro Trace Buffer 9 Direct
Parent topic: High-Speed Bus System
