Block Diagram

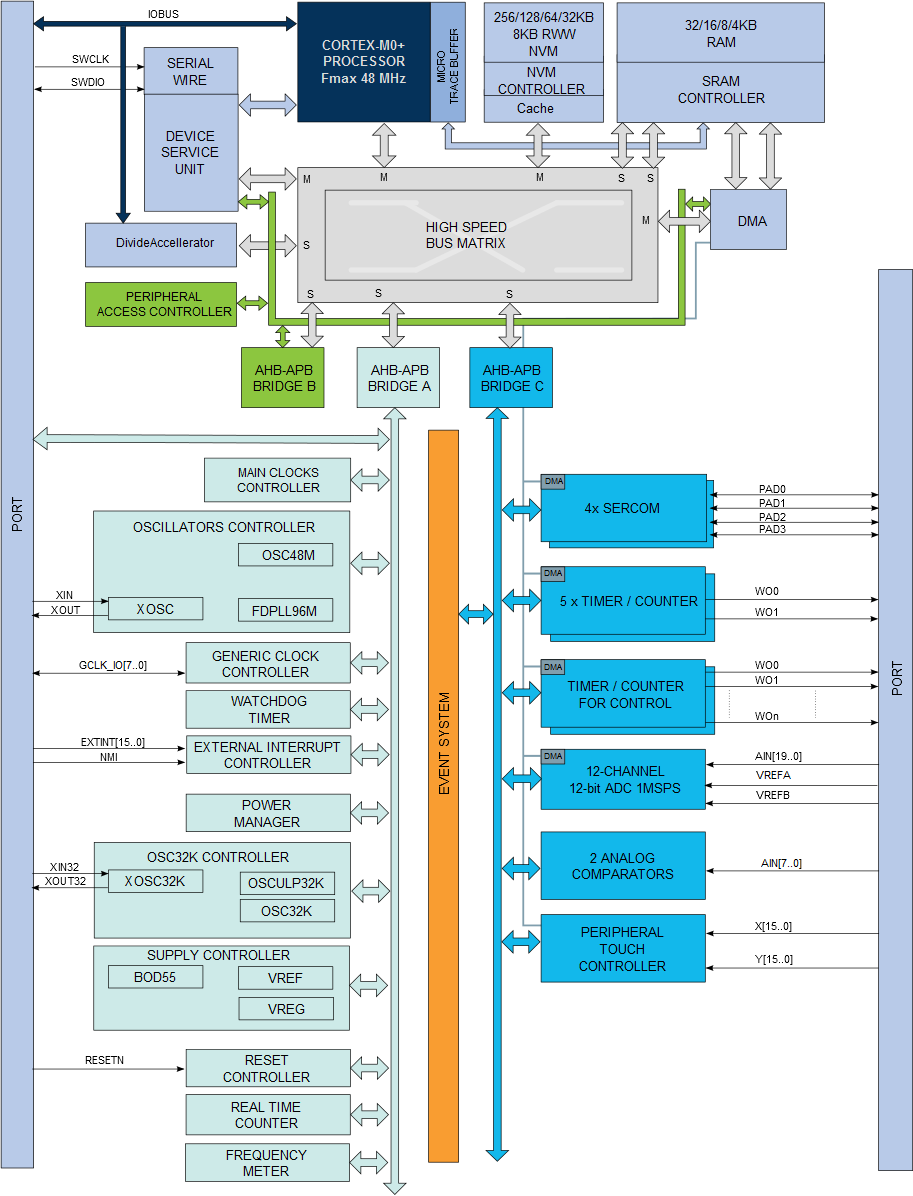

Figure 1. System Block Diagram for SAM C20E/G/J
Note:
  1. Some products have different number of SERCOM instances, Timer/Counter instances, PTC signals and ADC signals.
  2. The three TCC instances have different configurations, including the number of Waveform Output (WO) lines.
Related information
TCC Configurations
Multiplexed Signals
