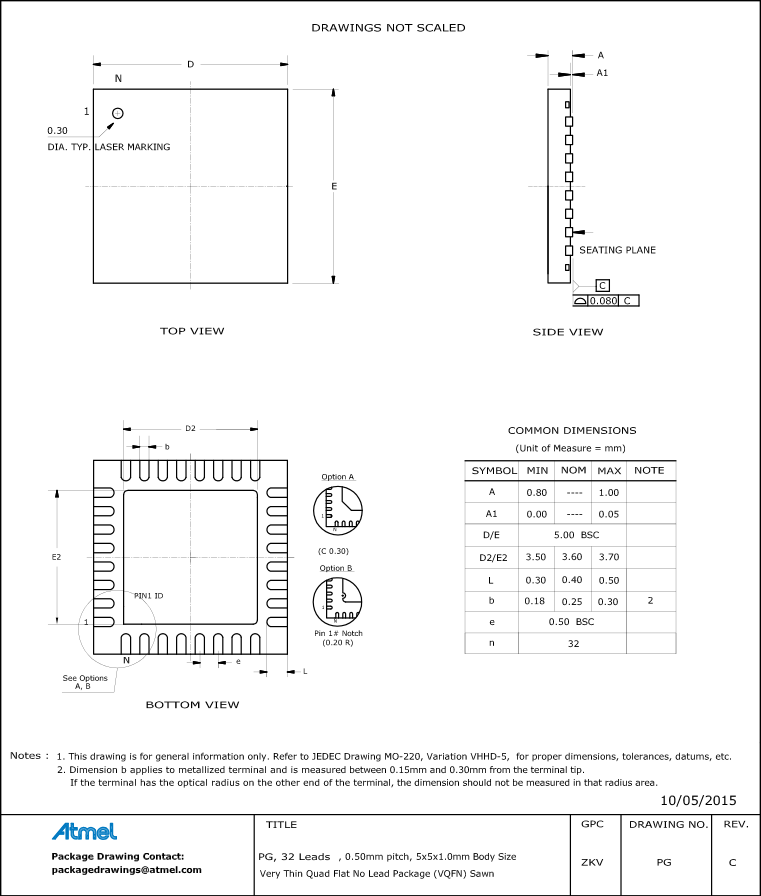

32 pin QFN

Note: The exposed die attach pad is connected inside the device to GND and GNDANA.

Table 1. Device and Package Maximum Weight
90	mg

Table 2. Package Characteristics
Moisture Sensitivity Level	MSL3

Table 3. Package Reference
JEDEC Drawing Reference	MO-220
JESD97 Classification	E3
