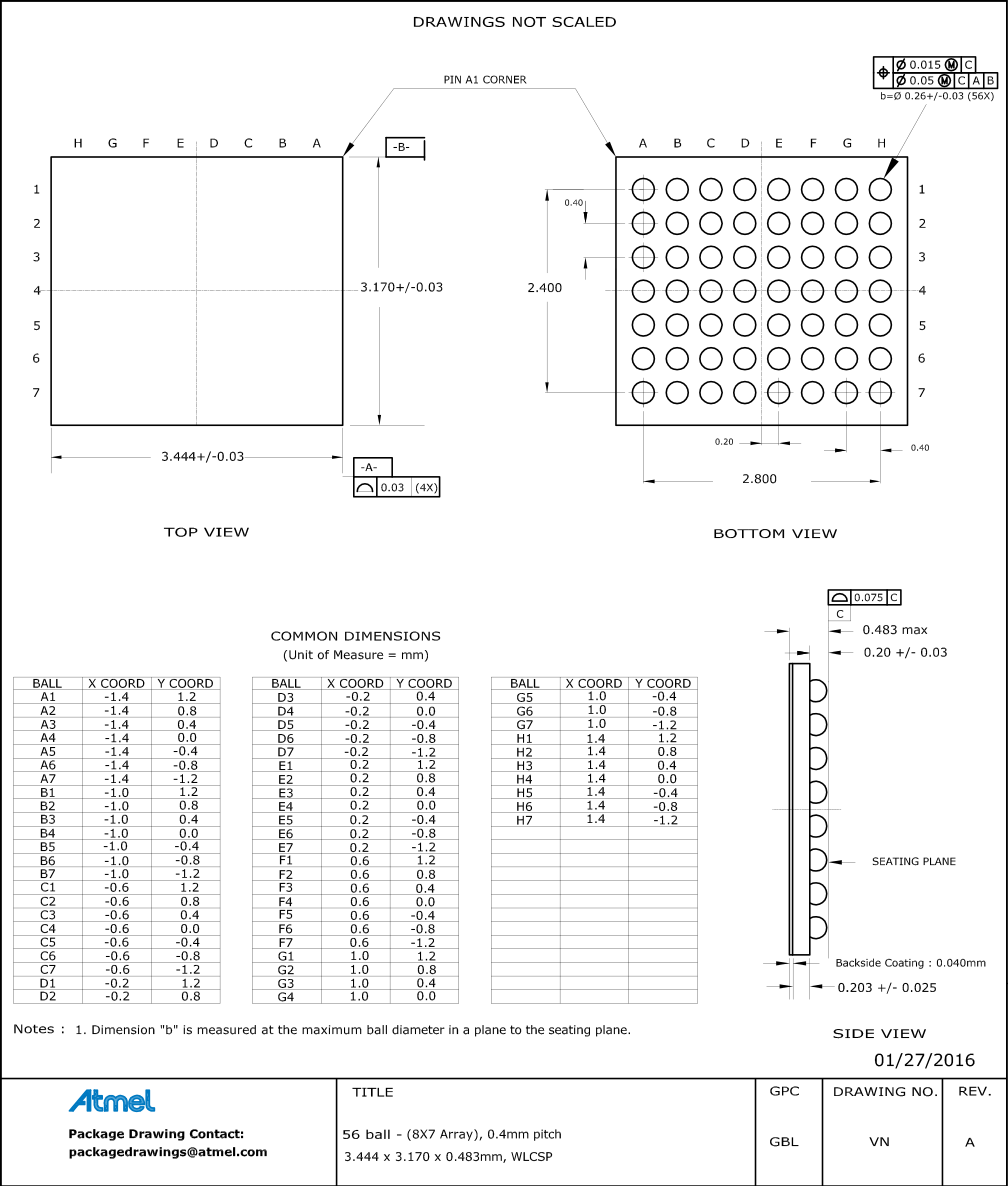

56-Ball WLCSP
Table 1. Device and Package Maximum Weight
9.63
mg
Table 2. Package Characteristics
Moisture Sensitivity Level
MSL1
Table 3. Package Reference
JEDEC Drawing Reference
N/A
JESD97 Classification
e1
Parent topic:
Package Drawings
