The SAM C20 uses a single supply from 2.70V to 5.50V or dual supply mode where VDDIO is supplied separately from VDDIN.
The following figures show the recommended power supply connections.

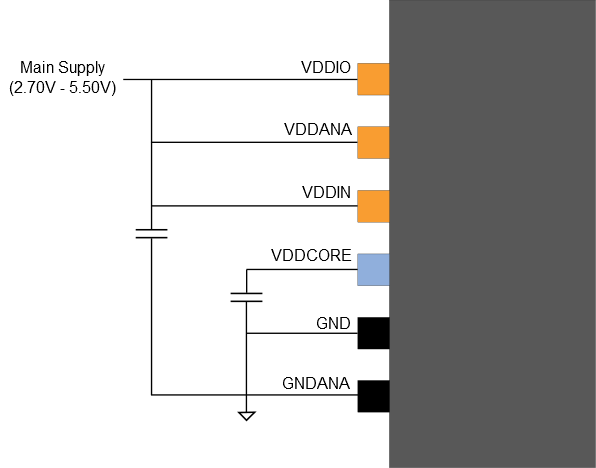

Figure 1. Power Supply Connection for single
supply mode only

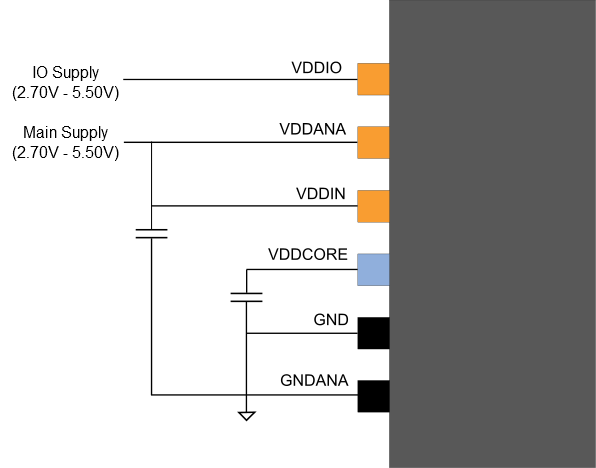

Power Supply Connection for dual
supply mode
Power Supply Connection for dual
supply mode
