POR - Power On Reset Characteristics

Table 1. POR Characteristics

Symbol	Parameters	Min	Typ	Max	Unit
VPOT+	Voltage threshold Level on Vddin rising	-	2.55	-	V
VPOT-	Voltage threshold Level on Vddin falling	1.53	1.75	1.97

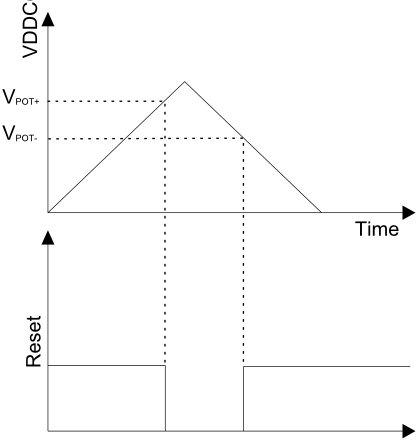

Figure 1. POR Operating Principle
