Four headers are available on the processor board:
-
10-pin header (J101): Interface for the radio frequency board.
-
Three pin header RF (J102 - not mounted): Auxiliary signals that can be patched in from the same three pin header on the radio frequency board. See Table below for pinout.
-
JTAG Interface (J103 - not mounted): Standard Atmel JTAG header.
-
Three pin header UART (J105 - not mounted): See Table below for pinout.
| Pin | Name |
|---|---|
| J102-1 | Clock Output |
| J102-2 | ID Chip |
| J102-3 | Test pin - AT86RF230 |
| Pin | Name |
|---|---|
| J105-1 | GND |
| J105-2 | UART TX |
| J105-3 | UART RX |

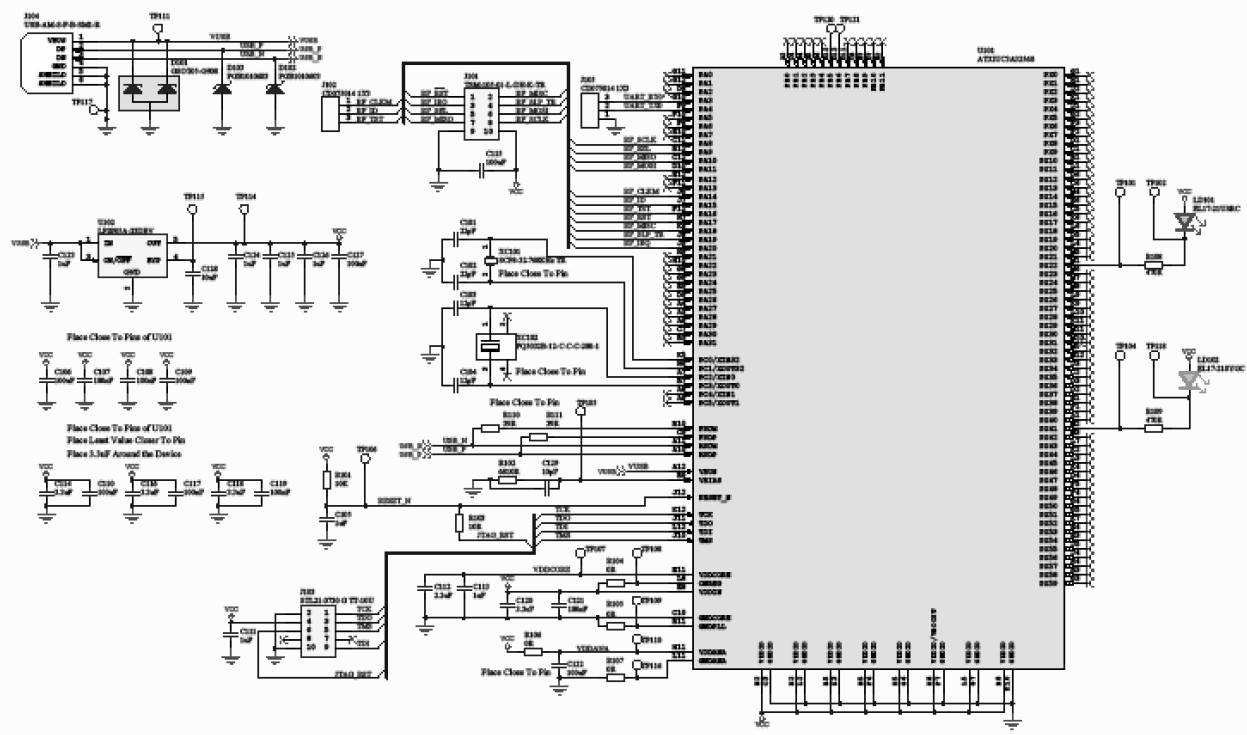

Figure 1. Processor Board Schematics
